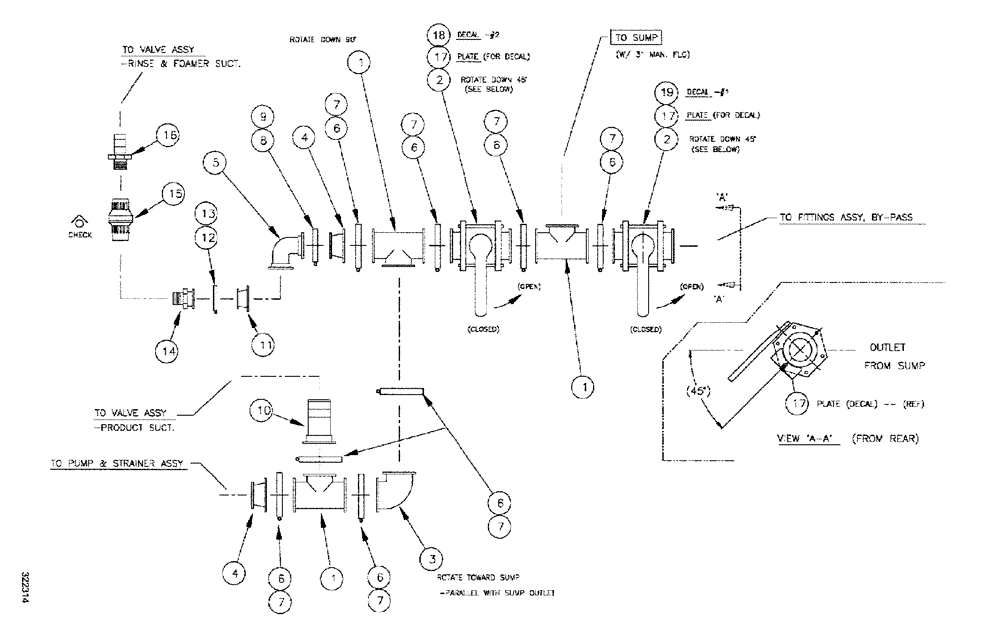

Запчасти Case IH SPX3200 (09-020) - FITTINGS ASSEMBLY - (3") SUCT. ELLIPTICAL TANK (78) - SPRAYING

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

3шт.

2

BN321070

VALVE,3" Flange

Ball, 3" Flange

2шт.

3

BN321077

ELBOW,90 Degree Elbow, 3" Flange x 3" Flange, Poly

manifold 3" x 90

1шт.

4

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

2шт.

5

BN316710

FITTING,90 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

ELBOW, 2" F. F. full port

1шт.

6

BN321074

CLAMP,101.6mm

Manifold, 3"

7шт.

7

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

7шт.

8

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

9

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

10

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

11

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.

12

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

13

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

14

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

1шт.

15

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

16

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

1шт.

17

BN323114

PLATE, MTG decal (SS)

2шт.

18

BN323101

DECAL

valve, sump, (on-off)

1шт.

19

BN323102

DECAL

valve, sump, (on-off)

1шт.
