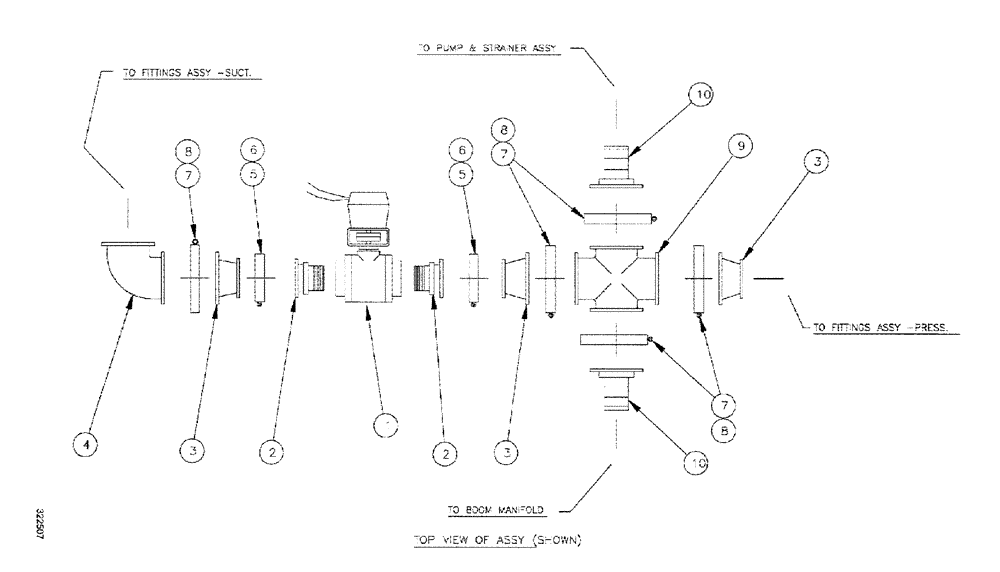

Запчасти Case IH SPX3200 (09-016) - BY-PASS FITTINGS ASSY. - SS ELLIPT. TANK (78) - SPRAYING

1

BN318863

VALVE

elect. 2" full 3 sec.

1шт.

2

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

3

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

3шт.

4

BN321077

ELBOW,90 Degree Elbow, 3" Flange x 3" Flange, Poly

manifold 3" x 90

1шт.

5

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

6

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

7

BN321074

CLAMP,101.6mm

Manifold, 3"

5шт.

8

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

5шт.

9

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

10

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

3" x 2" Hose Barb

2шт.
