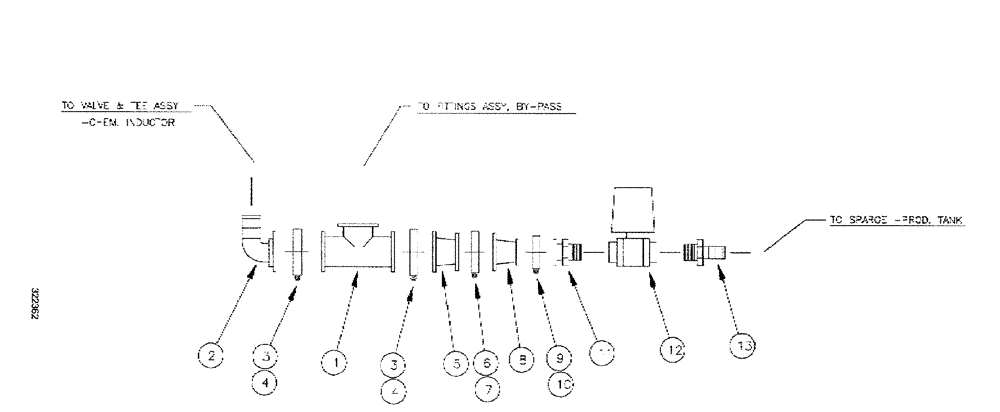

Запчасти Case IH SPX3200 (09-014) - PRESSURE FITTINGS ASSY. - SS ELLIPT. TANK (78) - SPRAYING

1

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2" Full Port Flange

1шт.

2

BN322505

FITTING,M220 FP Flanged Hosebarb

BARB, 90 MAN. 2" FP x 1.5" H

1шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

4

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

5

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.

6

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

8

BN322551

REDUCER,2" Flange x 1" Flange

2" FLG x 1" FLG

1шт.

9

BN303203

CLAMP,1" Flange

1FL

1шт.

10

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

11

BN306903

MANIFOLD,1" Flange x 1" Male NPT, Poly

STR 1" x 1" male

1шт.

12

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

13

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

1шт.
