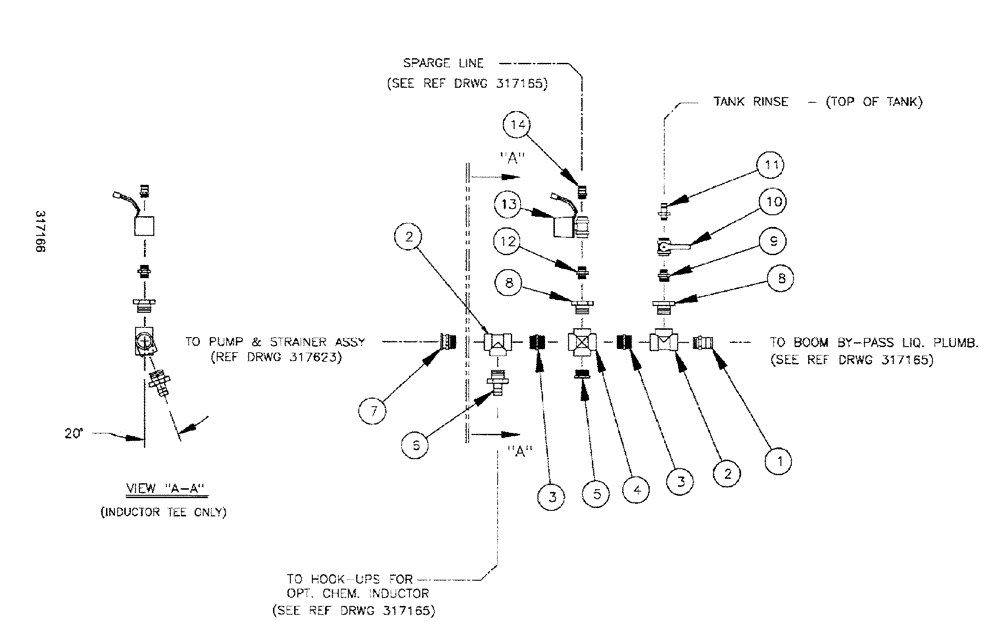

Запчасти Case IH SPX3200 (09-012) - PRESSURE FITTINGS ASSEMBLY - SPHERICAL TANK (78) - SPRAYING

1

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

2

BN73779

TEE,2" Poly Tee

2" Poly Pipe

2шт.

3

BN73783

NIPPLE

2" NPT Short Poly

2шт.

4

BN73791

CROSS

2" NPT, poly

1шт.

5

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

6

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

7

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

8

BN307007

REDUCER

bushing, 2" x 1"

2шт.

9

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

10

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

11

BN73561

FITTING

BARB, 3/4 NPT x 3/4HS

1шт.

12

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

13

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

14

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

1шт.
