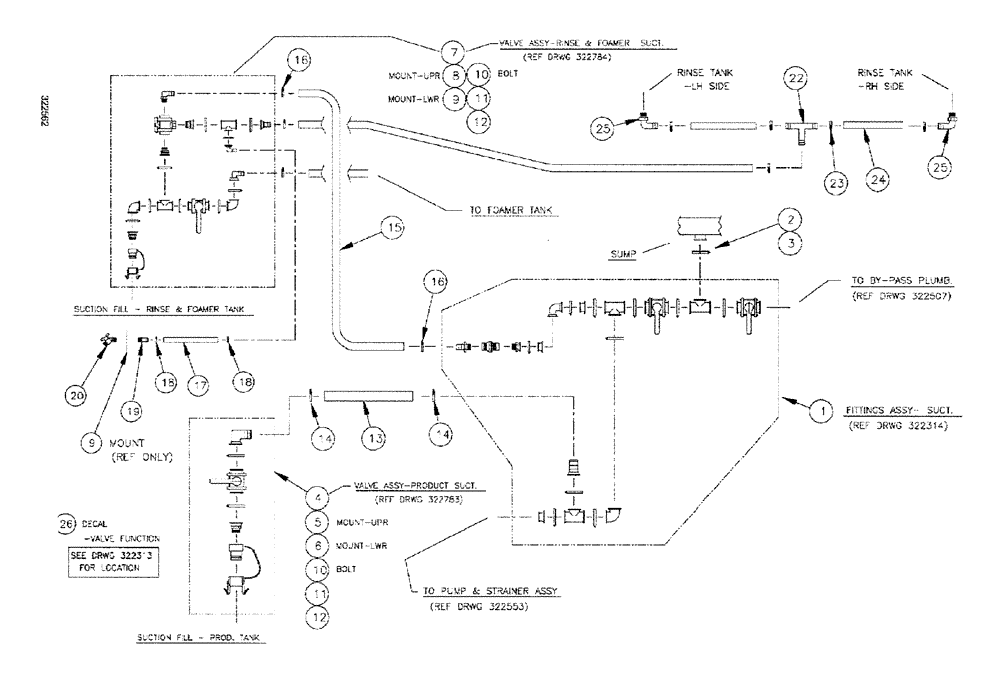

Запчасти Case IH SPX3200 (09-010) - LIQ. PLUMB, SUCTION - (3") ELLIPTICAL (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

FITTINGS ASSY., 3" SUCT-ELLP.

1шт.

See Fig. 09-020

1шт.

2

BN321074

CLAMP,101.6mm

Manifold, 3"

1шт.

3

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE ASSY., prod. suction

1шт.

See Fig. 09-030

1шт.

5

BN322683

MOUNT, valve (3" STD)

1шт.

6

BN322881

MOUNTING PLATE

valve

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE ASSY., rinse & foam suction

1шт.

See Fig. 09-024

1шт.

8

BN322884

MOUNTING PLATE

valve (3-WAY)

1шт.

9

322885

SUPPORT

MOUNT, valve

1шт.

10

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

11

BN50146

WASHER,3/8", Stainless

4шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

13

BN316575

HOSE, 3" x 39.5" suction

1шт.

14

BN2403361

CLAMP

T-bolt, band, 3"

2шт.

15

BN318858

HOSE,1.50" ID x 38.00"

Kanaflex

1шт.

16

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

17

BN53857

HOSE,0.75" ID x 26.00"

Flexible

1шт.

18

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

19

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

20

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

21

BN323052

HOSE, 1.25" x 100" EPDM

1шт.

22

BN317579

TEE

hosebarb, 1.25"

1шт.

23

BN76084

HOSE CLAMP

Adj. #24, SS

6шт.

24

BN323053

HOSE, 1.25" x 69", EPDM

2шт.

25

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

2шт.

26

BN322571

DECAL

valve function 781 C

1шт.
