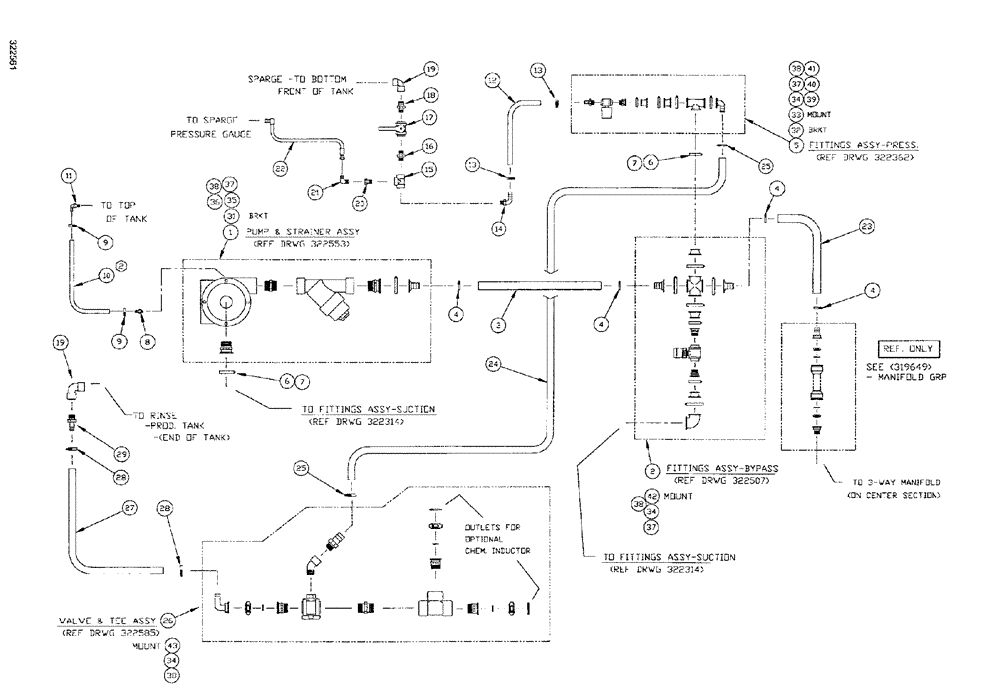

Запчасти Case IH SPX3200 (09-006) - LIQ. PLUMB, PRESSURE, 3" ELLIPTICAL (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

PUMP & STRAINER ASSY.

1шт.

See Fig. 09-028

1шт.

2

NSS

NOT SOLD SEPARAT

FITTINGS ASSY., bypass

1шт.

See Fig. 09-016

1шт.

3

BN324204

HOSE,12.00"

EPDM, Poly YN

1шт.

4

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

5

NSS

NOT SOLD SEPARAT

FITTINGS ASSY, PRESS.

1шт.

See Fig. 09-014

1шт.

6

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

7

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

8

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

9

BN76094

HOSE CLAMP

SS #M4

1шт.

10

BN324201

HOSE, 1/4" EPDM x 94"

1шт.

11

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

12

BN53739

HOSE, EPDM 3/4" ID x 42.0"

1шт.

13

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

14

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

15

BN73560

TEE

3/4" poly pipe

1шт.

16

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

17

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

18

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

19

BN73742

ELBOW

90º x 1 Poly

2шт.

20

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

21

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

22

BN67392

HOSE

3/8" x 144" EPDM

1шт.

23

BN318119

HOSE,143.00"

EPDM

1шт.

24

BN317410

HOSE,1.50" ID x 65.00"

EPDM

1шт.

25

BN53811

CLAMP

2" ID, T-bolt

2шт.

26

NSS

NOT SOLD SEPARAT

VALVE & TEE ASSY. , CHEM.

1шт.

See Fig. 09-026

1шт.

27

BN53820

HOSE, EPDM 1" ID x 92"

1шт.

28

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

29

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

31

322389

BRACKET

SPARE PART pump MT

2шт.

32

322401

DRIVE BUSHING

SPARE PART BRACKET, MTG (valve)

1шт.

33

322402

SLEEVE

MOUNT, valve

1шт.

34

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

35

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

36

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

37

BN50146

WASHER,3/8", Stainless

12шт.

38

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

9шт.

39

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

40

BN50142

WASHER,5/16", Stainless Steel

2шт.

41

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.
