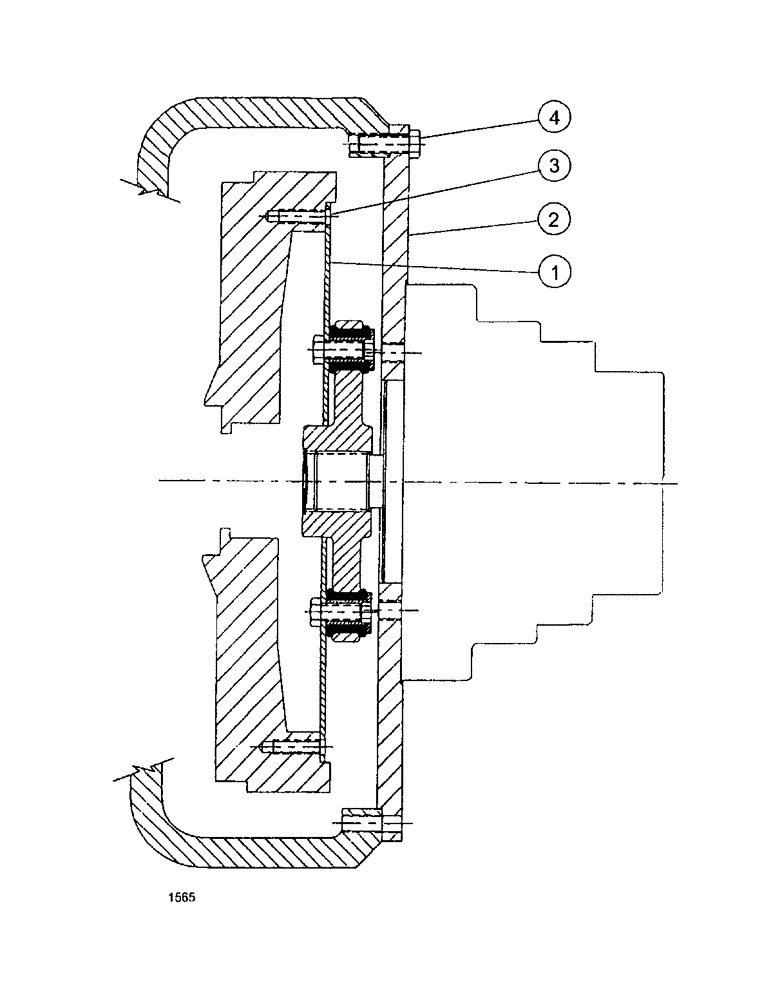

Запчасти Case IH SPX3200 (03-005) - FLYWHEEL COUPLER ASSEMBLY (10) - ENGINE

1

BN309955

FLYWHEEL

COUPLER

1шт.

2

BN309956

PLATE

pump mount

1шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

BN300499

WASHER,M10, 10.9

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

ns

NSS

NOT SOLD SEPARAT

PKG., hydrostat linkage

1шт.

See Fig. 03-073

1шт.
