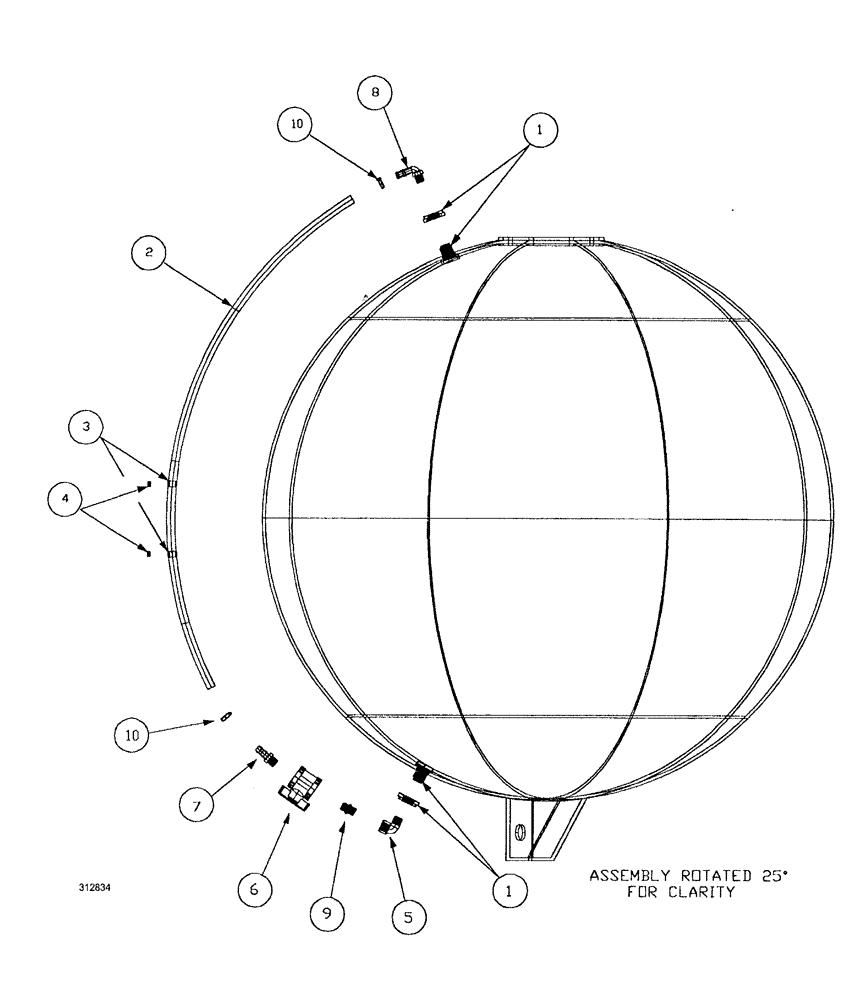

Запчасти Case IH SPX3200 (09-002) - PKG,SIGHT GAUGE- 750GL, SPH (78) - SPRAYING

1

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

2

BN320451

HOSE,0.75" ID x 81.50"

1шт.

3

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

4

BN50064

NUT

3/8"-16, Stainless Steel

2шт.

5

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

6

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

7

BN73561

FITTING

BARB, 3/4 NPT x 3/4 HS

1шт.

8

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

9

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

10

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.
