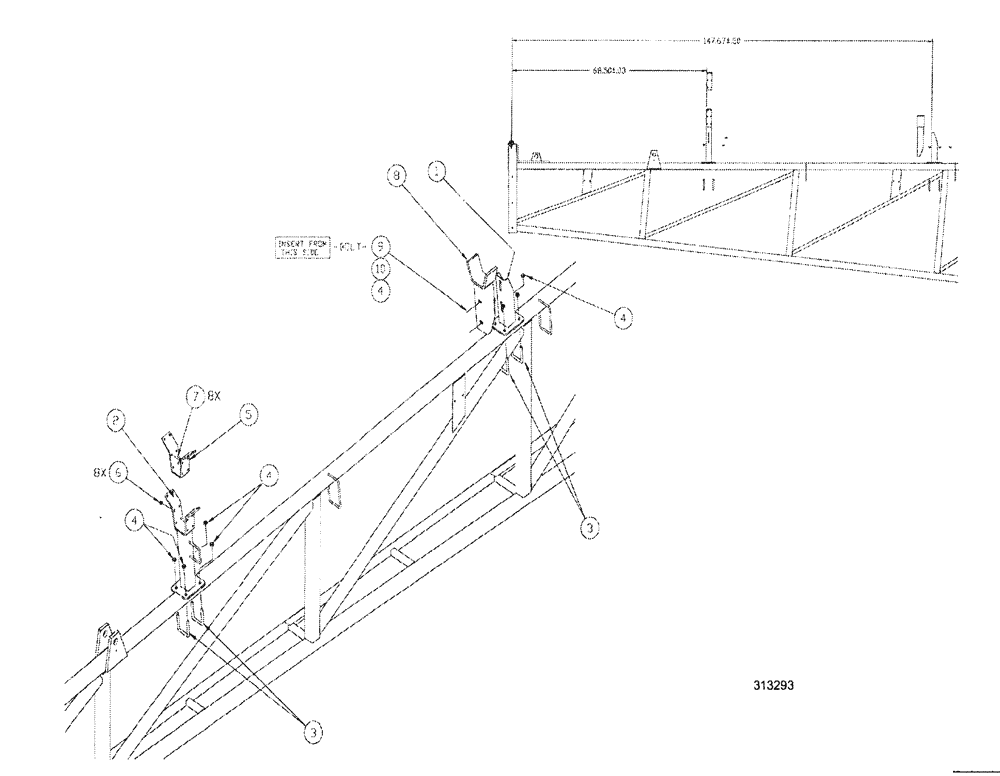

Запчасти Case IH SPX3200 (08-013) - OUTER CRADLE ASSEMBLY - 90 (78) - SPRAYING

1

BN325309

BASE

cradle

1шт.

2

342671A1

CRADLE

outer, 90'

1шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

4

88902

NUT,3/8"-16

10шт.

4

BN50061

LOCK NUT

3/8"-16, UNC, Whiz, OBS, use 231-4146

1шт.

5

342668A1

SLIDE

boom tip cradle

1шт.

6

BN55359

LOCK NUT,1/4"-20, SS

12шт.

7

BN1912839C

BOLT

FLH. SOC., 1/4"-20 x 1"

12шт.

8

BN325312

CRADLE

Upper

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

BN50145

WASHER

3/8, G5

4шт.
