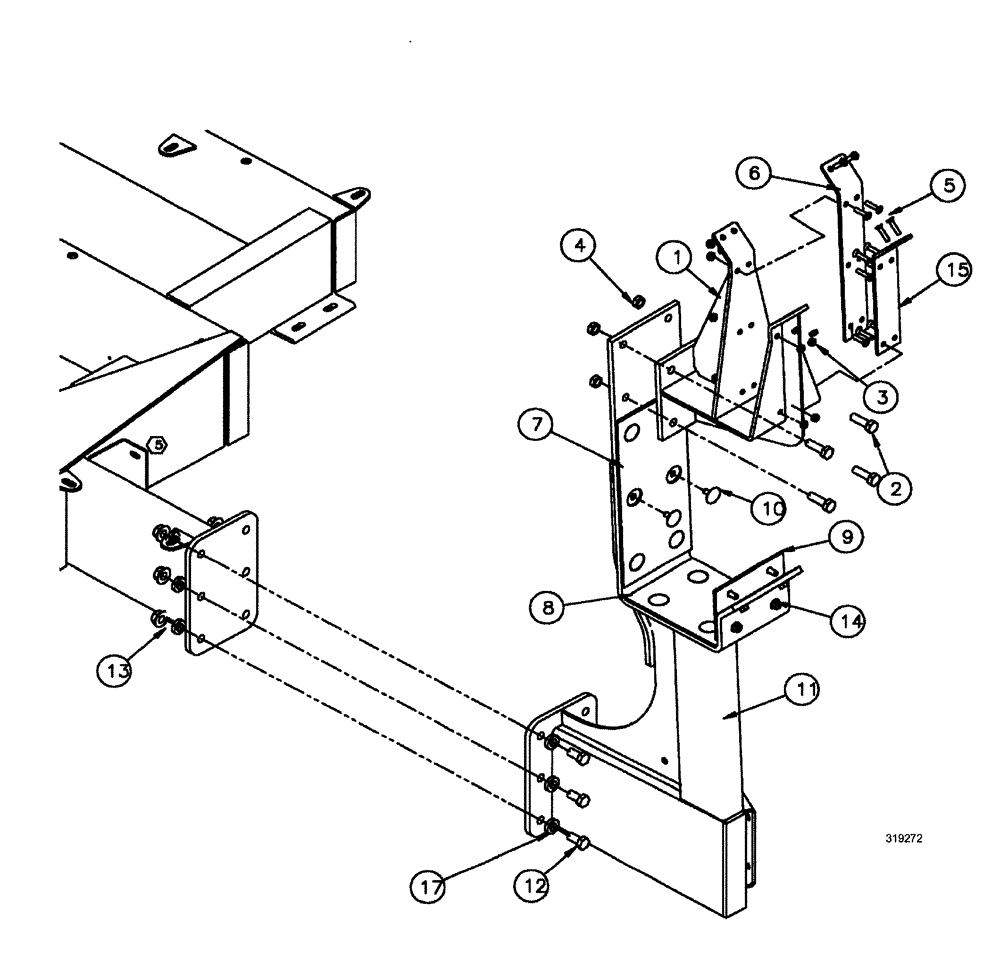

Запчасти Case IH SPX3200 (08-008) - RH CRADLE GROUP (78) - SPRAYING

1

BN319260

CRADLE

top boom

1шт.

2

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

3

BN55359

LOCK NUT,1/4"-20, SS

14шт.

4

100038

NUT,M12 x 1.75, Cl 8

4шт.

5

BN1912839C

BOLT

FLH. SOC., 1/4"-20 x 1"

14шт.

6

BN320149

CRADLE

LINER, one

1шт.

7

BN314797

PAD

Cradle Side

1шт.

8

BN314802

PAD, RUBBER

cradle, lower

1шт.

9

BN310397

PAD

cradle plastic

1шт.

10

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

14шт.

11

BN324571

CRADLE

boom, R.H.

1шт.

12

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

6шт.

13

86992215

LOCK NUT,1/2"-13, GC

6шт.

14

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

14шт.

15

BN320150

CRADLE

LINER, cradle, two

1шт.

16

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

17

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

12шт.
