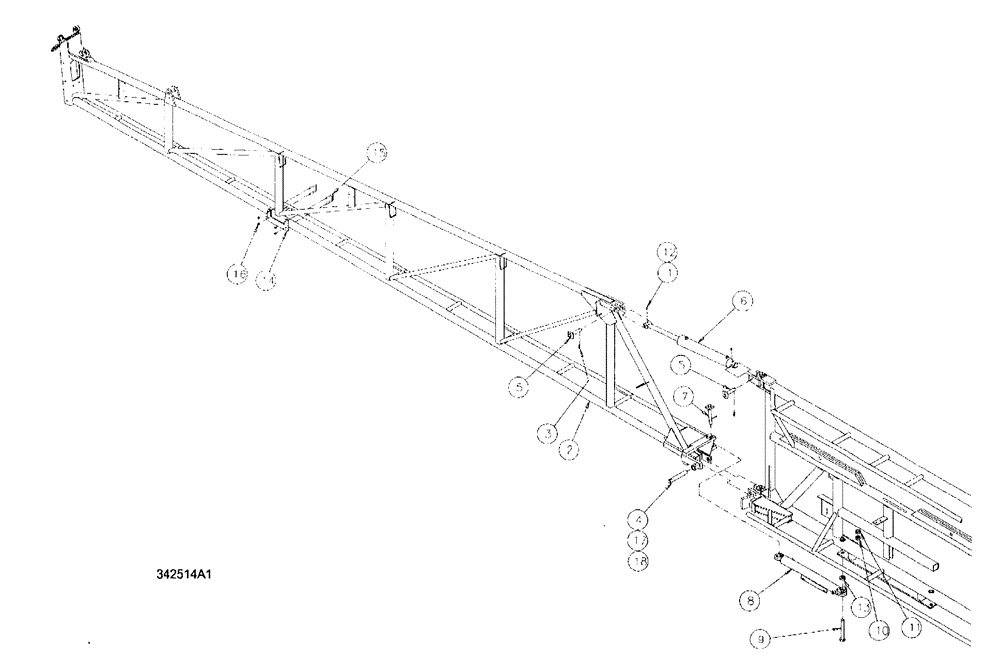

Запчасти Case IH SPX3200 (08-007) - BOOM GRP, LH-60 - 1.25"PV (78) - SPRAYING

1

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

2

342509A1

BOOM

LH inner (1.25" PV)

1шт.

3

BN148976

PIN, ROLL

1/4" x 1 3/4"

3шт.

4

342260A1

PIN,31.75mm OD x 203.2mm L

pivot, inner boom

1шт.

5

BN66860

PIN

1.00 x 4.00

2шт.

6

BN323172

CYLINDER ASSY.

3.00 x 18 x 1.50

1шт.

7

BN324141

PIN

boom pivot

1шт.

8

87266302

CYLINDER

Boom Pivot LH

1шт.

87266302R

REMAN-HYD CYLINDER

SPX3200 SPX-SERIES PATRIOT SPRAYER (11/01-10/02)

1шт.

87266302C

CORE-HYD CYLINDER

Return Number

1шт.

9

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

1шт.

10

280286

NUT,1"-8, GB

1шт.

11

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

13

BN68753

SPACER

17/8 x 7/16 x 1/2

1шт.

14

BN319291

CRADLE

boom lock

1шт.

15

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

17

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

18

88902

NUT,3/8"-16

1шт.
