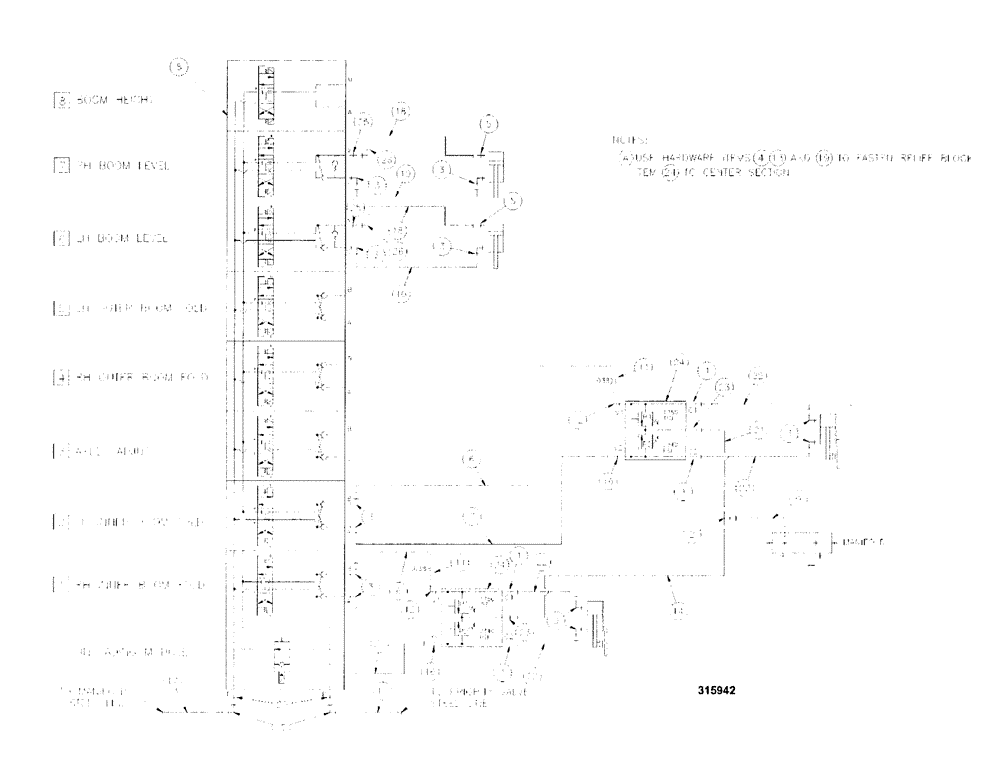

Запчасти Case IH SPX3200 (06-024) - BOOM (78) - SPRAYING

2

BN22159

TEE

3/4-16 37°

1шт.

3

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

12шт.

4

86637953

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

4шт.

6

BN319394

HOSE

4 x 129"

2шт.

7

BN319395

HOSE

4 x 131"

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE, 8-bank, directional

1шт.

See Fig. 06-036

1шт.

9

BN315697

HOSE ASSY.

8 x 190"

1шт.

10

BN319199

HOSE

4 x 200"

2шт.

11

BN316137

ORIFICE

-6 X -6, .038

2шт.

12

BN445005

ADAPTER

Adapter - 90º 37 FLR 08

2шт.

13

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

14

BN53027

HOSE ASSY.

1/2" x 36"

1шт.

15

BN53707

FITTING

90° 3/4-16 JIC

2шт.

16

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

17

BN53818

HOSE

1/2" ID x 66", 100R2

2шт.

18

BN319200

HOSE

4 x 182"

2шт.

19

280736

NUT,5/16"-18, GC

4шт.

20

BN60440

ADAPTER

STR., "o" ring

2шт.

21

BN67131

HYDRAULIC HOSE

1/2" 100R1 x 44"

1шт.

22

BN67538

HOSE ASSY.

1/4" ID x 24"

4шт.

23

BN444004

FITTING

ADAPTER, o-ring, 37 flare

2шт.

24

NSS

NOT SOLD SEPARAT

VALVE, double relief

2шт.

See Fig. 06-046

1шт.

25

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

2шт.

26

BN55333

ADAPTER

4JIC, swivel, 90

2шт.

27

BN319396

HOSE

4 x 127"

1шт.
