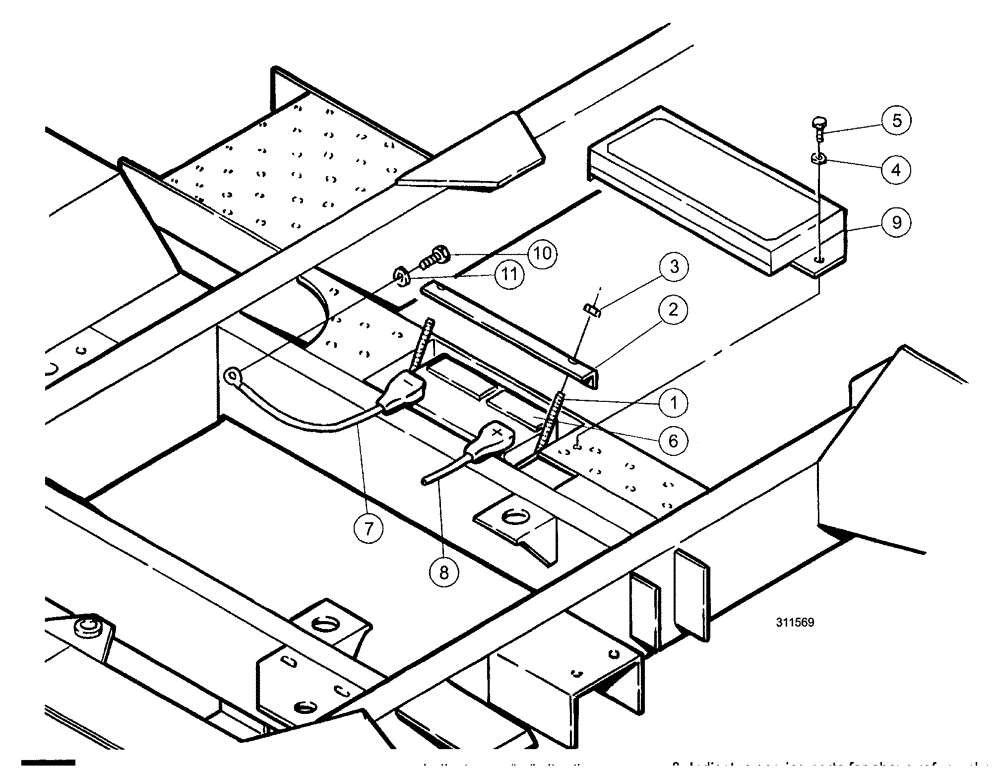

Запчасти Case IH SPX3200 (03-070) - BATTERY PACKAGE (55) - ELECTRICAL SYSTEMS

1

BN7020

ROD

5/16 dia. x 11.5

2шт.

2

BN29276

ANGLE

Battery Hold Down

1шт.

3

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

4

BN50141

WASHER

5/16, FW, G5

2шт.

5

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

6

A187592

WET BATTERY

12V 950 CCA Post

1шт.

7

BN313316

NEG BATTERY CABLE

1шт.

8

BN311567

POS BATTERY CABLE

1шт.

9

BN66124

COVER

BATTERY ASSY.

1шт.

BN67241

COVER

14GA.HRS 9.75 x 23

1шт.

Indicates service parts for above Ref. number

1шт.

BN29977

PLATFORM

Safety Walk - Flextread, 6" x 16"

1шт.

Indicates service parts for above Ref. number

1шт.

BN67240

SEAL

clip-on, 16.75"

1шт.

Indicates service parts for above Ref. number

1шт.

10

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

11

BN300500

WASHER,M12, 10.9

1шт.
