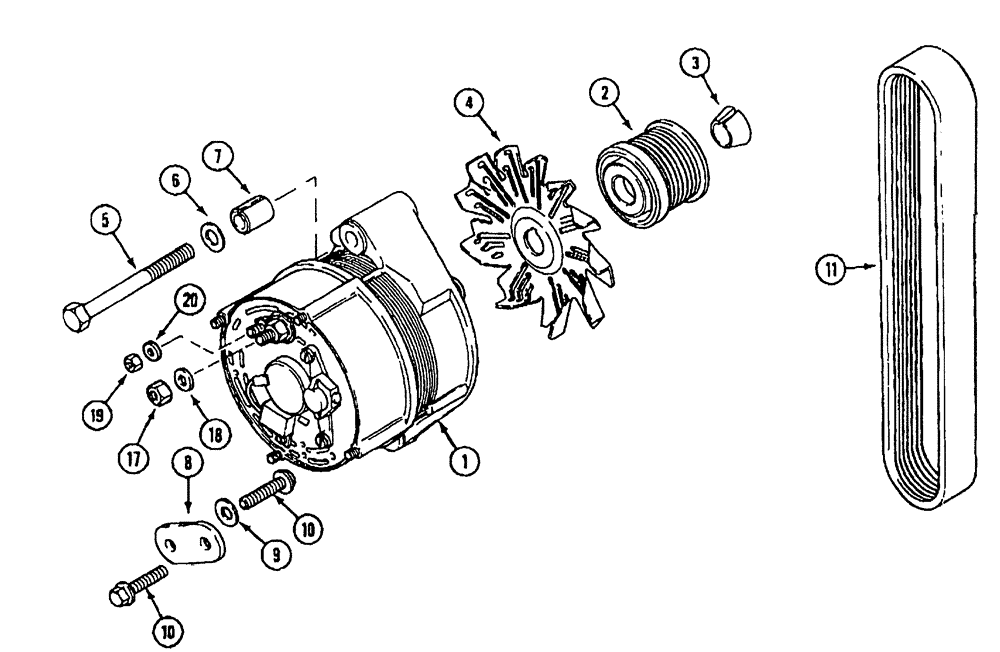

Запчасти Case IH SPX3200 (03-059) - ALTERNATOR PACKAGE (55) - ELECTRICAL SYSTEMS

1

327121A1

ALTERNATOR

120 AMP

1шт.

1

87020406R

REMAN-ALTERNATOR

SPX3200 (11/01-10/02), Reman For New P/N 327121A1

1шт.

87020406C

CORE-ALTERNATOR

Return Number

1шт.

2

J908560

PULLEY

ALTERNATOR

1шт.

3

J908563

RETAINER

1шт.

4

327397A1

FAN

ALTERNATOR

1шт.

5

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

J902469

SPACER

1шт.

8

J903089

SUPPORT

BRACE

1шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

M8

1шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

11

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

1шт.

17

86528579

NUT,M8 x 1.25

1шт.

19

825-1405

NUT,M5, Cl 8

1шт.

20

86509828

LOCK WASHER,M5

1шт.

21

BN322878

REPAIR KIT

Alternator Diode Pack, Not Shown

1шт.
