(02-017) - ACCESS PANEL ASSEMBLY - RH

Запчасти Case IH SPX3200 (02-017) - ACCESS PANEL ASSEMBLY - RH (55) - ELECTRICAL SYSTEMS

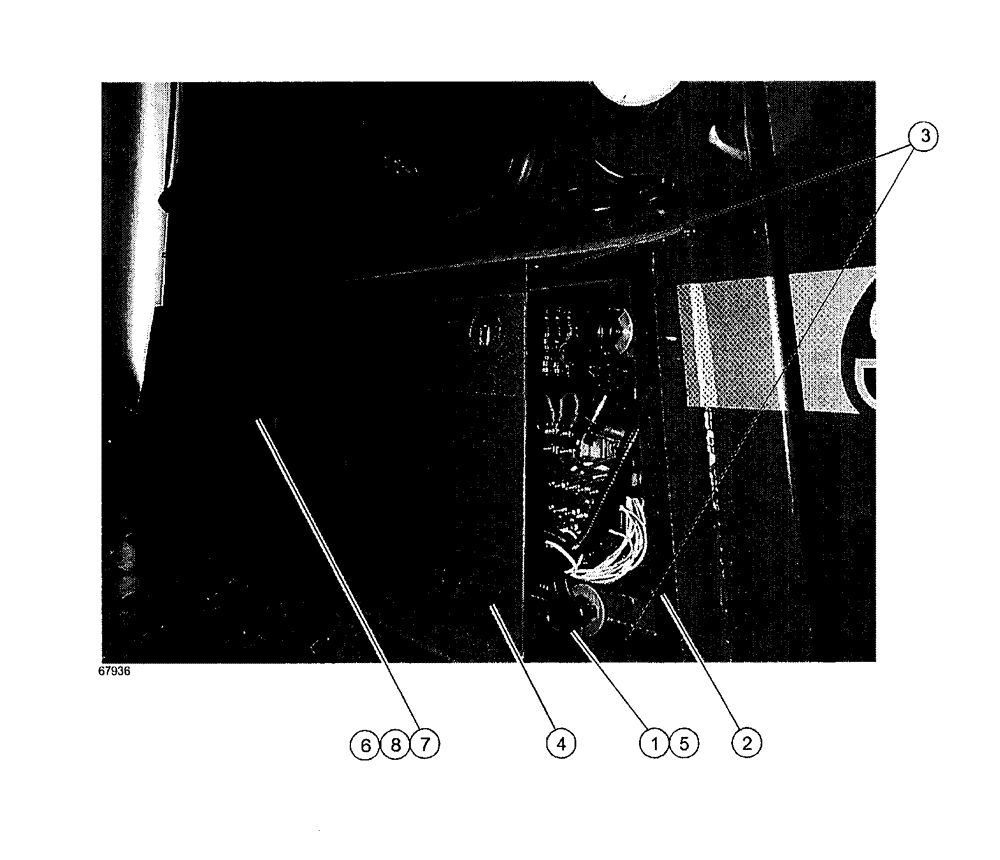

Схема запчастей Case IH SPX3200 - (02-017) - ACCESS PANEL ASSEMBLY - RH (55) - ELECTRICAL SYSTEMS
4
8
2
6
7
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

2

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

2шт.

3

84167815

RUBBER SEAL

Electrical Bay, Bulk Length 9'

2шт.

4

BN303165

PANEL, SIDE

access

1шт.

5

BN303278

WASHER

3/8 NP SS

4шт.

6

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

7

BN311626

HANDLE

Molded Grab, Black

1шт.

8

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

2шт.
