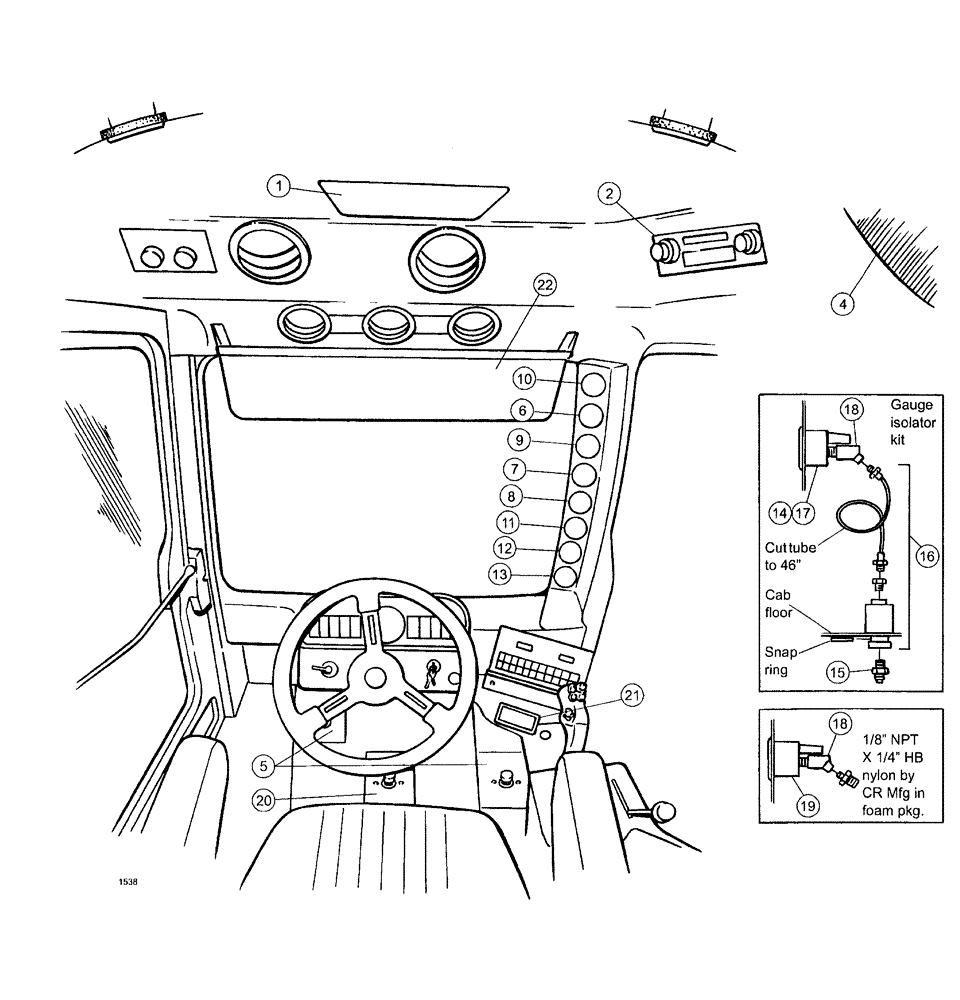

Запчасти Case IH SPX3200 (01-008) - GAUGES, ACCESSORIES (55) - ELECTRICAL SYSTEMS

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

BN300876

BULB

Dome, 12 volt

1шт.

Indicates service parts for above Ref. number

1шт.

2

BN323959

RADIO

RADIO, din mount

1шт.

BN57222

ANTENNA

Radio

1шт.

BN315877

SCREW,1/4" - 20 x 1"

1/4-20 x 1", PHIL, TH, SS

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

Indicates associated part

1шт.

BN323695

BRACKET, SUPPORTING

MOUNT, RADIO, SPX

1шт.

Indicates associated part

1шт.

BN323834

PLATE

radio mount

1шт.

Indicates associated part

1шт.

BN50146

WASHER,3/8", Stainless

2шт.

Indicates associated part

1шт.

BN52339

BOLT

3/8-16 x .5, HH, SS

2шт.

Indicates associated part

1шт.

BN55359

LOCK NUT,1/4"-20, SS

4шт.

Indicates associated part

1шт.

BN69006

BRACKET

ANTENNA mount radio

1шт.

Indicates associated part

1шт.

BN57220

SPEAKER

JVC, (set of 2)

1шт.

BN29522

SWITCH

Dimmer Floor Mount

1шт.

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Indicates associated part

1шт.

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

4шт.

Indicates associated part

1шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Indicates associated part

1шт.

6

BN67301

FUEL GAUGE

level 12V, N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above Ref. number

1шт.

7

BN67302

ELECTRICAL GAUGE

temp. 280 deg. 12V N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above Ref. number

1шт.

8

BN67303

ELECTRICAL GAUGE

oil pressure, 100 psi

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

9

BN67304

ELECTRICAL GAUGE

volt, 12VDC/10-16

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above Ref. number

1шт.

10

326944A1

HOURMETER

LCD, 12V

1шт.

11

BN68268

GAUGE

Boom pressure

1шт.

Includes Refs. 14, 15, 16, & 18

1шт.

12

BN68269

GAUGE

Sparge pressure

1шт.

Includes Refs. 15, 16, 17, & 18

1шт.

BN309417

FITTING

FT, HB,1/8MPT x 1/4 HS, NYL.

1шт.

Indicates part of an assembly

1шт.

13

BN68270

ELECTRICAL GAUGE

Assembly, Foam Pressure Gauge

1шт.

Includes Refs. 18 & 19

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Must be used in pressure gauges for ref. numbers 14, 17 and 19 because of internal interference with a longer bulb.

1шт.

Indicates service parts for above Ref. number

1шт.

15

BN441001

ADAPTER

pipe-37 Flare, 06-04

1шт.

16

BN67300

ISOLATOR

KIT, gauge

1шт.

17

BN304843

GAUGE

pressure, sparge

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Must be used in pressure gauges for ref. numbers 14, 17 and 19 because of internal interference with a longer bulb.

1шт.

Indicates service parts for above Ref. number

1шт.

18

BN68256

ELBOW

45º 1/8 NPT - Female

1шт.

19

BN67307

ELECTRICAL GAUGE

PRESS. foam, 0-80

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Indicates service parts for above Ref. number

1шт.

20

BN68440

SWITCH

Traction Assist

1шт.

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

4шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

BN304238

MOUNTING PARTS

bracket, rear

1шт.

Indicates associated part

1шт.

BN312062

MOUNTING PARTS

bracket, bent, LR

1шт.

Indicates associated part

1шт.

BN314731

BRACKET

Visor, RH

1шт.

Indicates associated part

1шт.

BN314732

BRACKET

Visor, LH

1шт.

Indicates associated part

1шт.

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

Indicates associated part

1шт.
