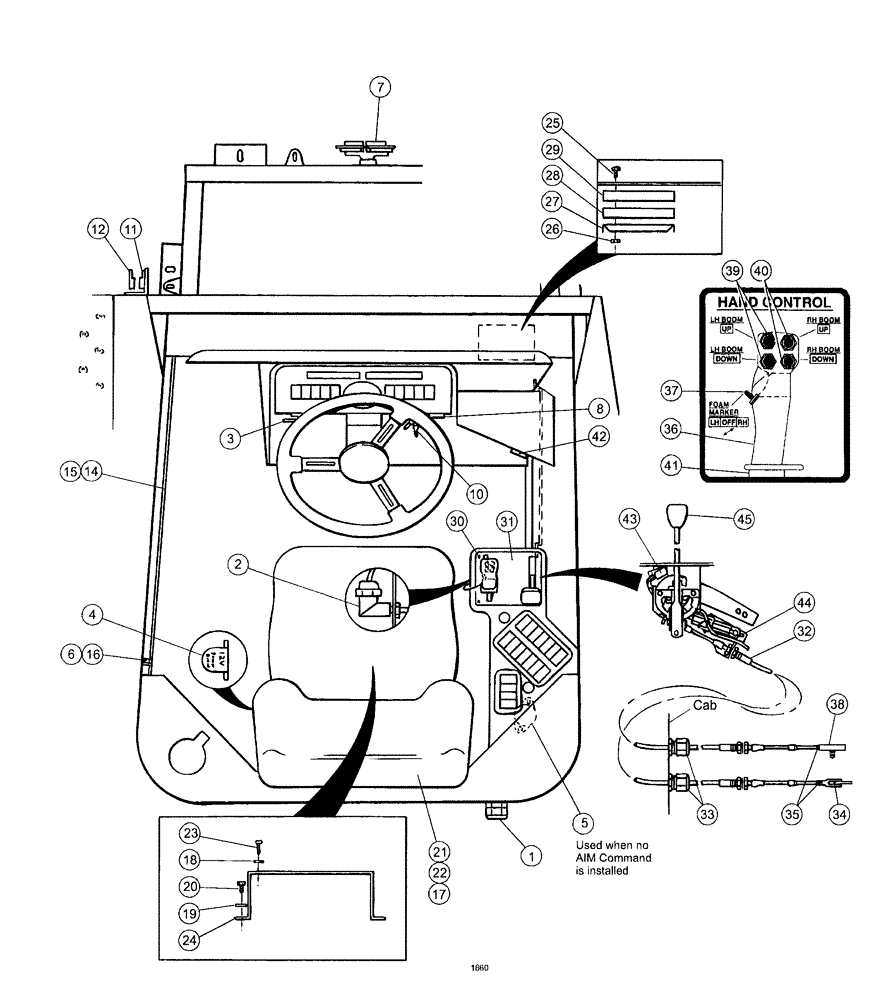

Запчасти Case IH SPX3200 (01-004) - CONTROLS, ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

BN66132

GROMMET

RELIEF, strain, battery

2шт.

2

BN29523

ELBOW

Fitting - Electric-Liquid Tight

1шт.

3

BN63712

FLASHER SWITCH

Dual rate w/handle

1шт.

4

BN67965

POWER SOCKET

Assy, Outlet w/End

1шт.

5

BN306058

ASSY., COVER terminal

1шт.

BN306057

CONTACT HOUSING

terminal

1шт.

Indicates associated part

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Indicates associated part

1шт.

6

BN67968

SWITCH

Door (Dome Light)

1шт.

Indicates associated part

1шт.

493-41017

LOCK WASHER,Ext, #8

2шт.

Indicates associated part

1шт.

BN50975

NUT

#8-32 (Steel)

2шт.

Indicates associated part

1шт.

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

2шт.

Indicates associated part

1шт.

7

NSS

NOT SOLD SEPARAT

GROUP, horn, dual

1шт.

See Fig. 01-006

1шт.

8

BN319663

BUZZER

Chime Tone

1шт.

10

334554A1

SWITCH

ignition, with 2 keys

1шт.

BN196-48-31C2

KEY, IGNITION

2-Case logo

1шт.

Indicates service parts for above Ref. number

1шт.

11

BN68182

ACTUATOR

Magnetic, 12V

1шт.

12

BN68183

ACTUATOR

Magnet

1шт.

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5

4шт.

Indicates associated part

1шт.

BN68261

WASHER

#4, Flat, G5

4шт.

Indicates associated part

1шт.

BN50125

NUT

4-40, HH, G5

4шт.

15

BN67371

STRIP

Door Stop

1шт.

16

BN69132

EXTENSION

Switch, Domelight

1шт.

17

BN29361

SAFETY BELT

Retractable BL

1шт.

20

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

BN50595

WASHER,1/2", Stainless

BLK contact, 3 POSI

1шт.

21

BN68850

SET OF BELTS,14.00" L

2, Set

1шт.

22

BN68852

SEAT

magnum 200 (gray)

1шт.

28

BN301702

SHOCK ABSORBER

Seat

1шт.

BN301703

ARMREST

Package, Gray

1шт.

BN303238

HANDLE

height adjust

1шт.

23

BN69005

BOLT,Skt Hd, 5/16" x 1"

Sk Hd, 5/16" x 1"

4шт.

24

BN69009

BRACKET

seat mount

1шт.

25

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

26

280736

NUT,5/16"-18, GC

2шт.

27

BN68264

COVER

14GA HRS 6.25 x 8.5

1шт.

28

BN68265

RUBBER SEAL

rubber 1 x 5 x 7

1шт.

29

BN68266

RUBBER SEAL

1 x 5 x 7

1шт.

31

BN68263

CONTROL

shift & throttle

1шт.

32

BN29256

CABLE,2438.4mm L

Hydro, Control, 96"

1шт.

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84"

1шт.

33

BN66132

GROMMET

SHIFT, strain relief

2шт.

34

BN29258

CLEVIS

Assembly With Pin

1шт.

35

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

36

BN66114

HANDLE

Shifter, (DJ/Raven)

1шт.

37

BN98892

SWITCH

Toggle, On-Off-On (Foam Marker)

1шт.

BN98894

JAM NUT

15/32 Jam

1шт.

Indicates associated part

1шт.

BN98893

BOOT

Toggle, black

1шт.

Indicates associated part

1шт.

38

NSS

NOT SOLD SEPARAT

JOINT, ball, (throttle)

1шт.

See Fig. 03-072

1шт.

39

BN98670

SWITCH

Push Button (LH Boom Function)

2шт.

BN98673

BOOT

Yellow

2шт.

Indicates associated part

1шт.

40

BN98670

SWITCH

Push Button (RH Boom Function)

2шт.

BN98672

BOOT

Green

2шт.

Indicates associated part

1шт.

41

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

42

BN16018

ALARM

Low Hopper

1шт.

43

BN98249

NEUTRAL START SWITCH

Micro Safe

1шт.

44

BN98248

SWITCH

Backup

1шт.

45

BN98247

KNOB

Assembly - Throttle

1шт.
