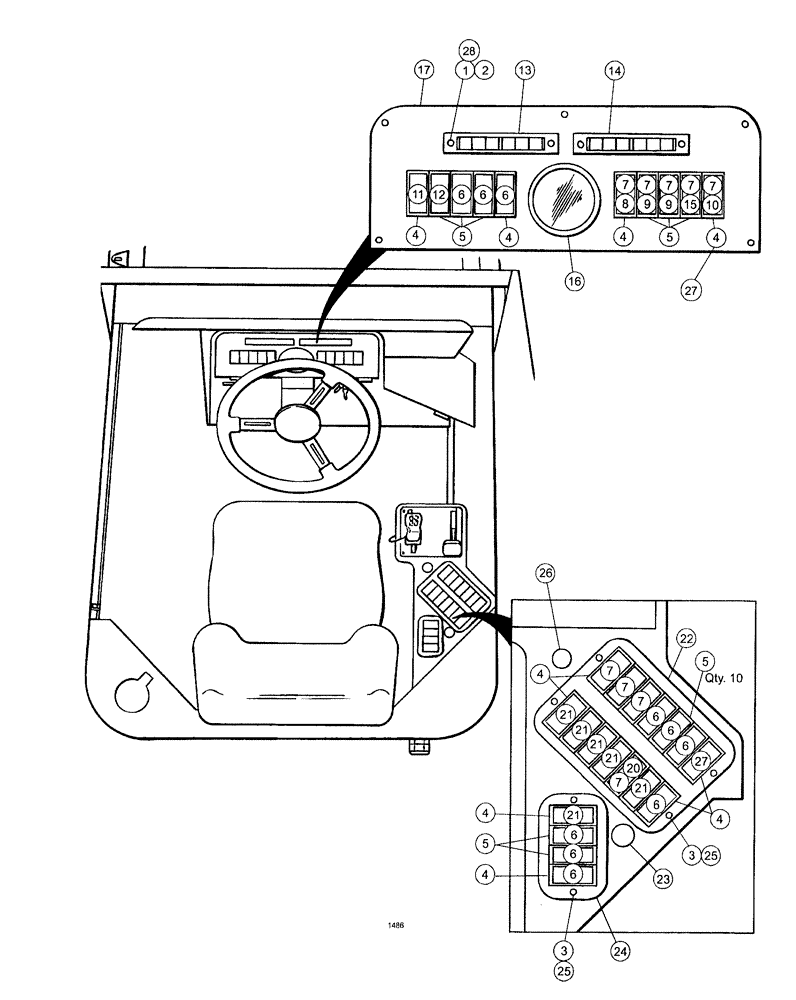

Запчасти Case IH SPX3200 (01-002) - CONTROL PANELS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
BN50795
NUT
hex, #8-32 (steel)
4шт.
2
BN52046
BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless
8"-32 x 1/2" SS, PH, Phillip
4шт.
3
BN52047
SCREW,Phil Pan Hd, #8 x 3/4", SST
#8 x 3/4 SS, PH, Phillip
11шт.
4
BN65931
PANEL
Switch Mount, End
12шт.
5
BN65932
PANEL
Switch Mount, Middle
18шт.
6
BN65933
PLUG
Switch Mount Panel
8шт.
7
BN65934
SWITCH
Single Pole, On-Off
12шт.
8
BN65935
LIGHT SWITCH
Actuator (Road lights)
1шт.
9
BN65936
ROCKER
Actuator - Floodlight Switch
2шт.
10
BN65937
ROCKER
Actuator - Domelight Switch
1шт.
11
BN311377
SWITCH
assembly, park brake
1шт.
12
BN65940
SWITCH
W/Handle Off-On-On (Wiper)
1шт.
13
BN65943
INDICATOR LIGHT
Cluster, LH (6)
1шт.
BN301816
BULB
12V
6шт.
Indicates service parts for above Ref. number
1шт.
BN301817
SOCKET
Bulb, For BN65943/44
6шт.
Indicates service parts for above Ref. number
1шт.
14
BN65944
INDICATOR LIGHT
Cluster, RH (6)
1шт.
BN301816
BULB
12V
6шт.
Indicates service parts for above Ref. number
1шт.
BN301817
SOCKET
Bulb, For BN65943/44
6шт.
Indicates service parts for above Ref. number
1шт.
15
BN65943
INDICATOR LIGHT
Hazard Warning
1шт.
16
BN67305
TACHOMETER
0-4000
1шт.
BN301813
BULB
12 V
1шт.
Indicates service parts for above Ref. number
1шт.
BN301814
SOCKET
Light
1шт.
Indicates service parts for above Ref. number
1шт.
BN301815
LIGHT
Filter, Lamp, Green
1шт.
Indicates service parts for above Ref. number
1шт.
17
BN68649
INSTRUMENT PANEL
Dash
1шт.
20
BN65938
ROCKER
Actuator - Switch
6шт.
21
BN65942
SWITCH
W/Handle On-Off-On
6шт.
BN302318
TOOL
Switch Removal
1шт.
22
BN310117
PLATE
MOUNT
1шт.
23
114550A1
POTENTIOMETER,1000 Ohm, 500V
1шт.
24
BN66267
PLATE
Mount, 14 GA Hrs, 3.37 x 5.62
1шт.
25
BN319894
FASTENER
"U" , #8 SCR/.12 panel
6шт.
26
342465A1
SWITCH
range select
1шт.
BN29440
KNOB
for Contact Block BN29439
1шт.
27
BN319895
FASTENER
"U" # 8SCR/.13 panel
5шт.
28
493-41017
LOCK WASHER,Ext, #8
4шт.
Выбрано товаров: 42
