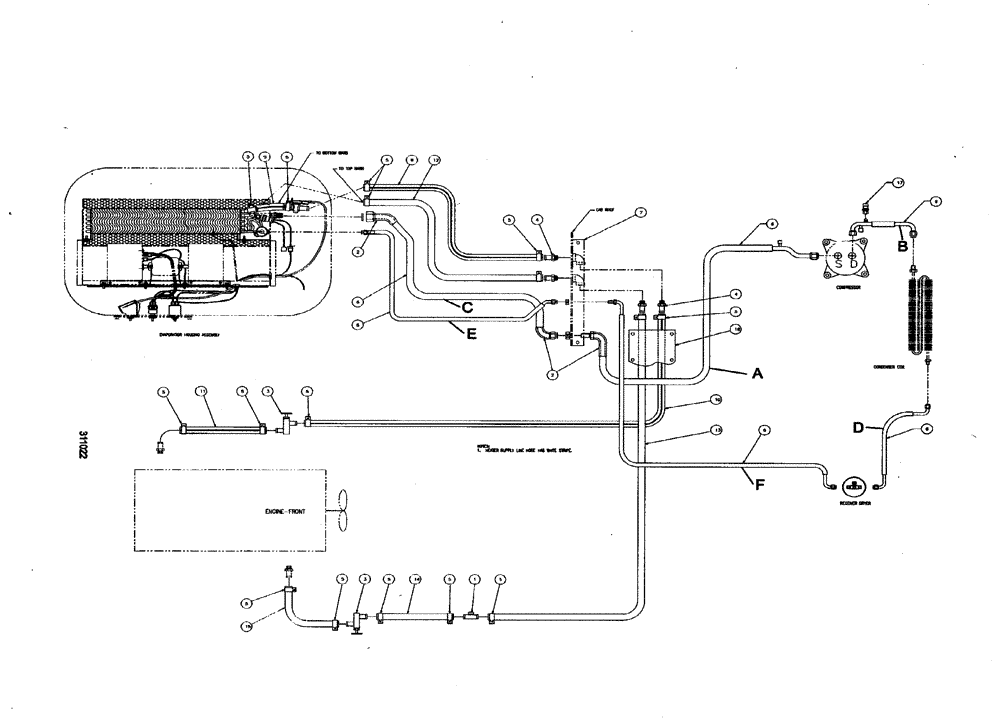

Запчасти Case IH SPX3200 (02-012) - A/C HOSE PACKAGE (50) - CAB CLIMATE CONTROL

BN310569

ELBOW

hosebarb, 1/2 MPT x 3/8 x 90º

1шт.

a

BN310620

HOSE ASSY.

w/o-ring, (A.C.)

1шт.

b

BN311012

FLEXIBLE HOSE

w/ O-ring (A.C.)

1шт.

c

BN313002

HOSE

ASSY., without O-Ring, A.C.

1шт.

d

BN318425

HOSE

ASSY., a/c dryer

1шт.

e

BN67791

HOSE

w/ O-Ring (A.C.)

1шт.

f

BN67794

HOSE

w/ O-Ring (A.C.)

1шт.

2

BN306271

TAPE

tar 10"

3шт.

3

BN303666

VALVE

shut-off

2шт.

4

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

4шт.

5

1954736C1

HOSE CLAMP,#24

14шт.

7

BN312080

COVER

Hose, w/hardware

1шт.

BN50146

WASHER,3/8", Stainless

2шт.

Indicates part of an assembly

1шт.

BN52339

BOLT

3/8-16 x .5, HH, SS

2шт.

Indicates part of an assembly

1шт.

BN67163

COVER

1шт.

Indicates part of an assembly

1шт.

8

BN306812

HOSE,0.63" ID

x 6"

1шт.

9

BN67789

HEATER HOSE,0.625" ID

Supply

1шт.

10

BN312076

HEATER HOSE,0.625" ID x 192.00"

Supply

1шт.

11

BN312078

HEATER HOSE

5/8" ID x 24" Supply

1шт.

12

BN67788

HEATER HOSE,0.625" ID

Return

1шт.

13

BN67790

HEATER HOSE,0.625" ID

Return

1шт.

15

BN312077

HEATER HOSE,0.625" ID x 12.00"

Return

1шт.

16

BN312081

COVER

enclosure, hose with hardware

1шт.

BN50208

BELT

1/4-20 x .5, STP

10шт.

Indicates part of an assembly

1шт.

BN67233

COVER

Enclosure

1шт.

Indicates part of an assembly

1шт.

17

87000227

SWITCH, A/C HIGH PRE

High N.C.

1шт.
