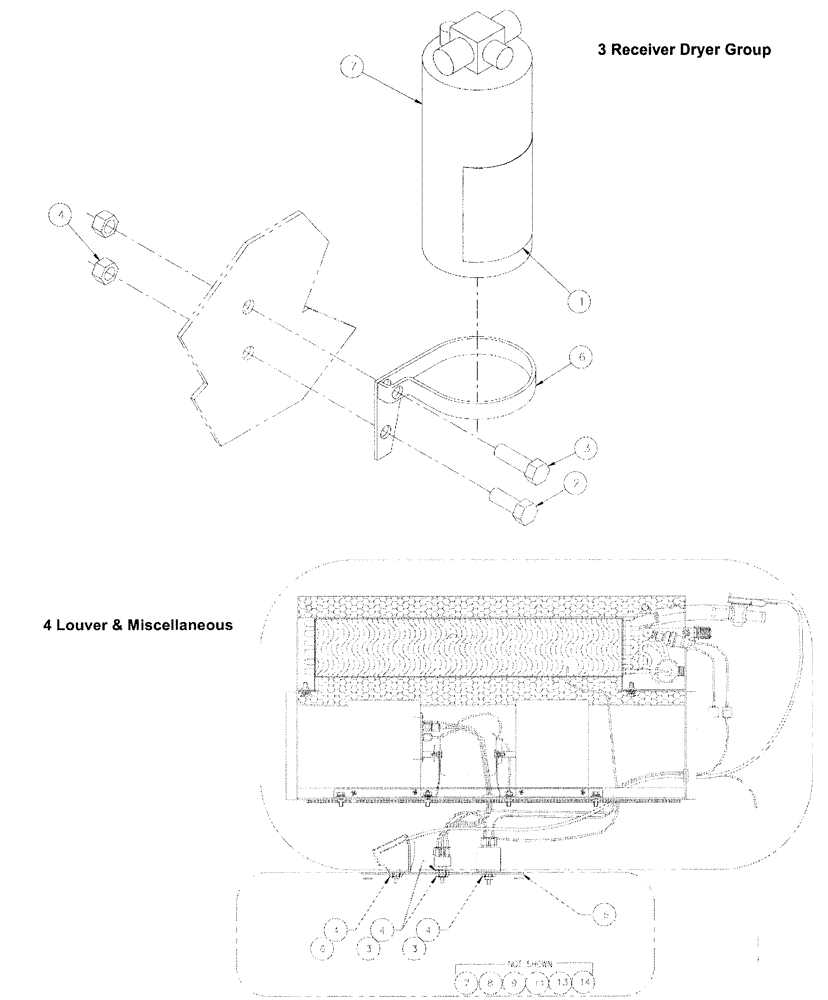

Запчасти Case IH SPX3200 (02-010) - A/C PACKAGE (50) - CAB CLIMATE CONTROL

1

BN301704

DECAL

Charge With 134A Gas

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

Receiver dryer group

1шт.

4

88902

NUT,3/8"-16

2шт.

Receiver dryer group

1шт.

5

BN51142

CABLE TIE

CABLE STRAP WATER, inline, housing assy.

5шт.

6

BN67726

CLAMP

GROUP, receiver dryer

1шт.

7

BN67797

RECEIVER-DRYER

Group

1шт.

3

BN67731

NUT

SWITCH, control, MTG., parts pkg. louver & misc.

3шт.

4

BN67740

KNOB

CONTROL, parts pkg. louver & misc.

3шт.

5

BN311018

PLATE

CONTROL, w/decal, parts pkg. louver & misc.

1шт.

6

BN312683

NUT

CONTROL, cable, parts pkg.-louver & misc.

1шт.

7

BN67735

VENT

LOUVER, 11/4 x 41/2 RECT, parts pkg. louver & misc.

4шт.

8

BN67734

VENT

LOUVER, w/ hose adapter, parts pkg. louver & misc.

2шт.

9

BN67732

VENT

LOUVER, 3" dia. flat, parts pkg. louver & misc.

2шт.

11

BN306271

TAPE

tar, 10", parts pkg., louver & misc.

3шт.

13

BN311023

VENT

LOUVER, 4" dia. w.wire clip, parts pkg., louver & misc.

5шт.

14

BN312684

CLAMP

HOSE, 2.12" to 4", parts pkg., louver & misc.

4шт.
