Запчасти Case IH SPX3200 (09-015) - BOOM PLUMBING GRP, 5-SEC 90 10" ON Liquid Plumbing

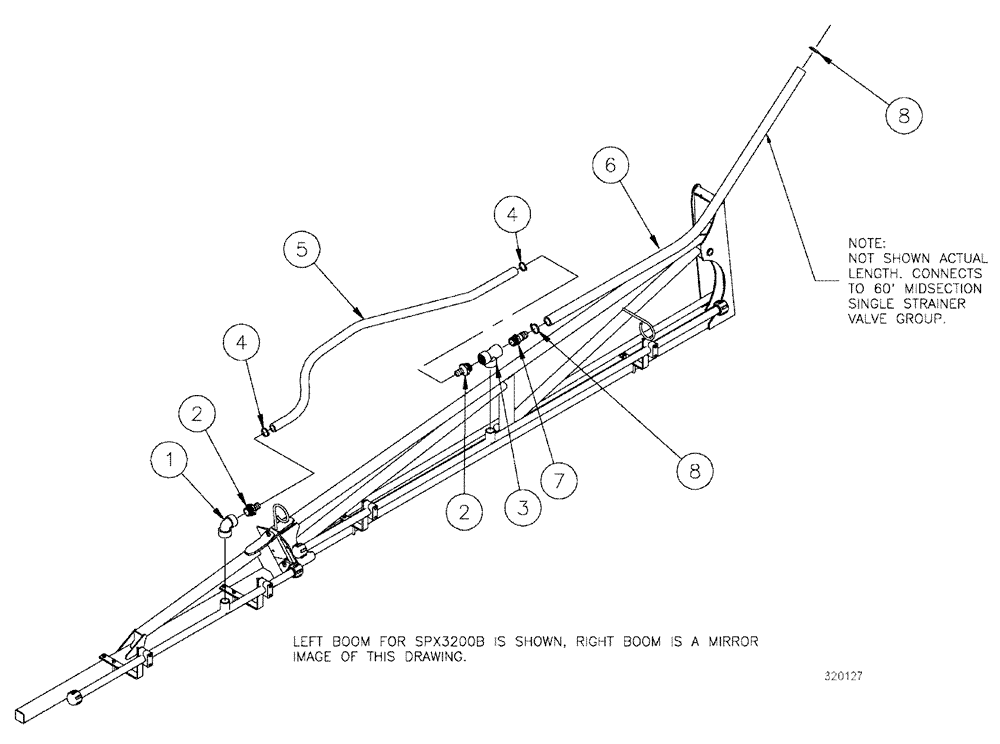

Схема запчастей Case IH SPX3200 - (09-015) - BOOM PLUMBING GRP, 5-SEC 90 10" ON Liquid Plumbing
1
5
4
7
3
8
2
2
8
4
6

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN321636

HOSE,1.00" ID x 78.00"

EPDM

1шт.

6

342664A1

HOSE

1 1/4" x 120", suction

1шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

Выбрано товаров: 8
