Запчасти Case IH SPX3200 (09-013) - CONTROL VALVE CENTER BOOM (5-SECT. LIQ) Liquid Plumbing

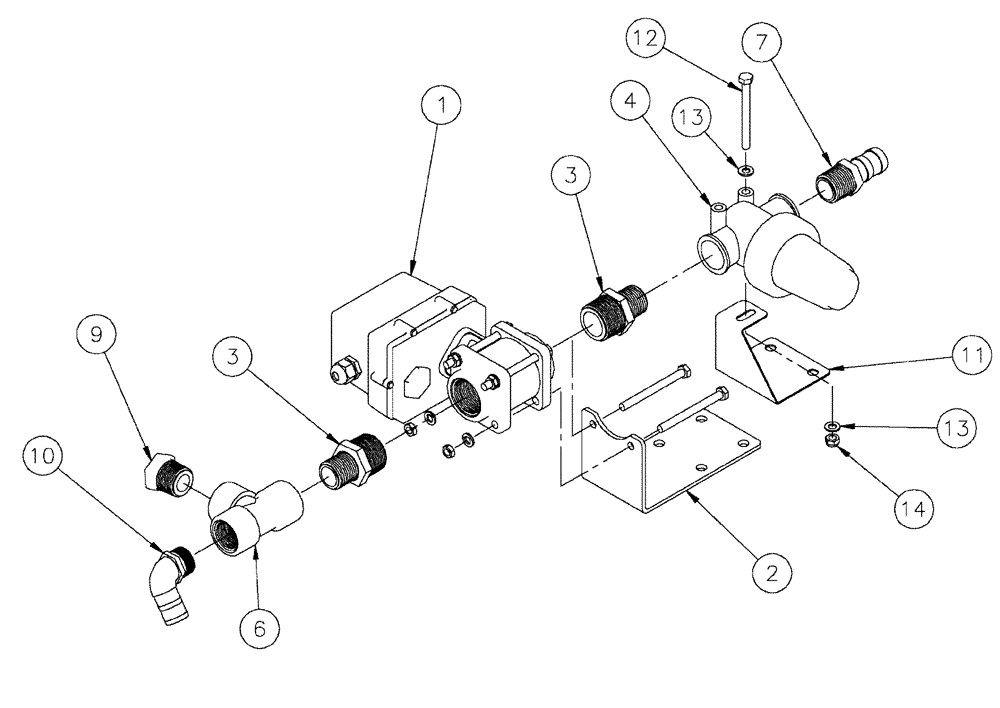

Схема запчастей Case IH SPX3200 - (09-013) - CONTROL VALVE CENTER BOOM (5-SECT. LIQ) Liquid Plumbing
3
1
13
9
11
10
2
4
7
3
12
13
6
14

Артикул

Название

Примечание

Количество

1

87268179

VALVE

1.25" Ball, Electric

1шт.

2

BN319996

BRACKET

NPT Ball Valve

1шт.

3

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

2шт.

4

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig. 09-022

1шт.

6

BN73629

TEE

1" Poly Pipe

1шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

9

BN73604

PLUG,1" Poly Pipe Plug

1" NPT, Pipe Poly

1шт.

10

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

11

BN320060

BRACKET

Strainer, Center

1шт.

12

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

13

BN50142

WASHER,5/16", Stainless Steel

2шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

Выбрано товаров: 13
