Запчасти Case IH SPX3200 (09-011) - OPERATOR STATION GROUP Liquid Plumbing

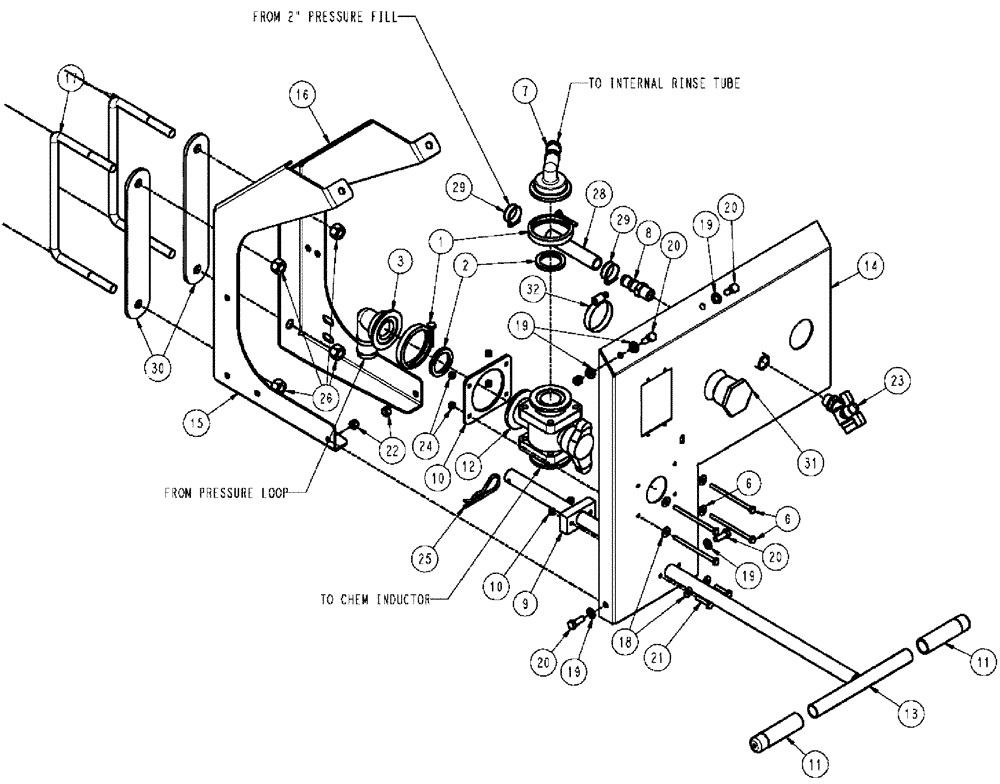

Схема запчастей Case IH SPX3200 - (09-011) - OPERATOR STATION GROUP Liquid Plumbing
31
16
10
6
8
9
14
26
29
20
20
20
23
11
25
20
15
19
19
7
19
29
10
3
21
1
2
17
11
28
18
30
22
13
19
24
12
6
32

Артикул

Название

Примечание

Количество

1

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

3

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

6

BN311764

BOLT,Hex, 1/4" - 20 x 4-1/4", SST

1/4"-20 X 4-1/4", Stainless Steel

4шт.

7

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

8

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

9

BN323177

BUSHING

Valve Handle Extension

1шт.

10

BN323367

PLATE

VALVE HOLDER

1шт.

11

BN323880

GRIP

Handle, 1" ID Vinyl

2шт.

12

BN324998

VALVE

Ball, 2" Flange x 2" Flange

1шт.

13

343411A1

HANDLE

3" valve 778D

1шт.

14

344398A1

MOUNTING PLATE

OPER. STA.

1шт.

15

343414A1

MOUNTING PLATE

operation STA. LH 778D

1шт.

16

343418A1

MOUNTING PLATE

operation STA. RH 778D

1шт.

17

343924A1

U-BOLT

U, M16-2, 150 x 256

2шт.

18

BN50138

WASHER,1/4", SS

6шт.

19

BN50146

WASHER,3/8", Stainless

6шт.

20

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

21

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

22

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

23

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

24

BN55359

LOCK NUT,1/4"-20, SS

6шт.

25

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

26

412066

NUT,M16 x 2.0, Cl 8

4шт.

28

343747A1

HOSE

3/4" x 5" EPDM

1шт.

29

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

30

86986975

SPACER

10" U-Bolt

2шт.

31

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

32

BN76056

HOSE CLAMP

#36

1шт.

Выбрано товаров: 29
