Запчасти Case IH SPX3200 (09-009) - SUMP VALVES GROUP Liquid Plumbing

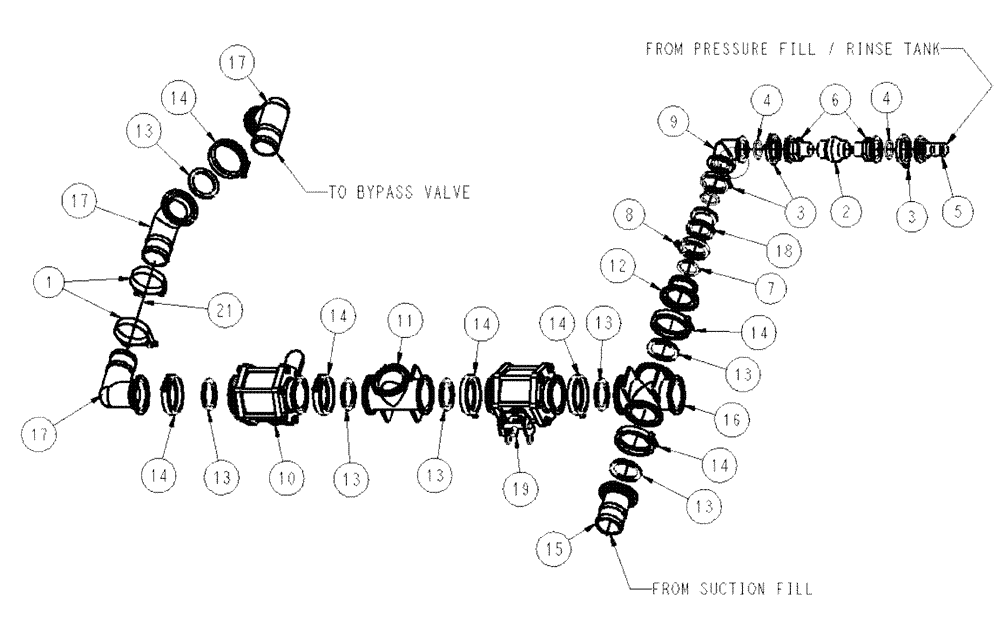

Схема запчастей Case IH SPX3200 - (09-009) - SUMP VALVES GROUP Liquid Plumbing
14
17
18
13
4
9
14
14
17
6
14
10
14
21
13
16
19
14
4
14
13
11
15
12
17
2
5
13
13
3
1
7
8
13
3
13

Артикул

Название

Примечание

Количество

1

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.

2

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

6

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

2шт.

7

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

8

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

9

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

10

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

11

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

12

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

1шт.

13

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

7шт.

14

BN321074

CLAMP,101.6mm

Manifold, 3"

7шт.

15

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

16

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

17

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

Barb-90, Manifold, 3' X 3" H

3шт.

18

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.

19

BN322929

VALVE

3" Manifold Ball

1шт.

21

BN326025

HOSE,3.00" ID BULK

S/D, EPDM

1шт.

Cut 8" from bulk roll

1шт.

Выбрано товаров: 21
