Запчасти Case IH SPX3200 (09-008) - BOTTOM PLUMBING GROUP Liquid Plumbing

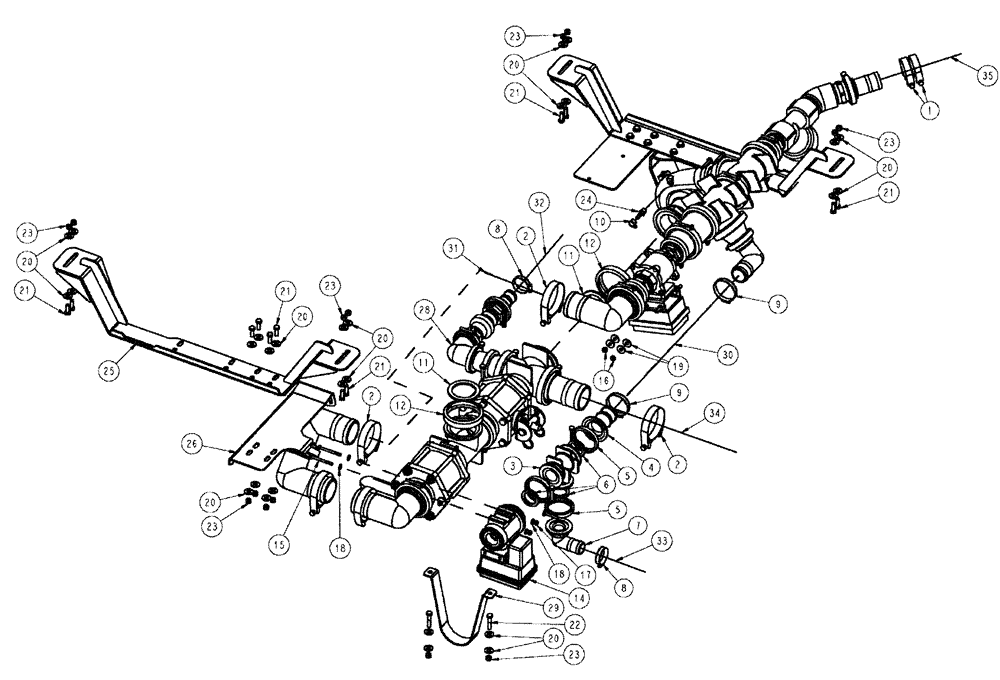

Схема запчастей Case IH SPX3200 - (09-008) - BOTTOM PLUMBING GROUP Liquid Plumbing
26
23
29
8
1
20
23
21
20
20
23
24
20
9
7
32
17
22
35
15
4
5
23
19
11
31
20
18
33
23
21
12
16
9
12
3
18
34
20
28
14
30
21
5
6
2
21
2
20
25
2
11
10
8
23
21

Артикул

Название

Примечание

Количество

1

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

1шт.

2

BN2403395

CLAMP

T-Bolt Band 3.56"

3шт.

3

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

4

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

8

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

9

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

10

BN310450

HOSE CLAMP

#3, 304 Ss

1шт.

11

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

2шт.

12

BN321074

CLAMP,101.6mm

Manifold, 3"

2шт.

14

BN324054

VALVE,2" Full Port Flange x 2" Full Port Flange

1-1/2" B, Electric

1шт.

15

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

16

280736

NUT,5/16"-18, GC

2шт.

17

BN55359

LOCK NUT,1/4"-20, SS

2шт.

18

BN50138

WASHER,1/4", SS

4шт.

19

BN50142

WASHER,5/16", Stainless Steel

4шт.

20

BN50146

WASHER,3/8", Stainless

24шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

12шт.

22

BN50263

BOLT,3/8"-16 X 1-3/4", Stainless Steel

2шт.

23

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

24

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

25

87267143

BRACKET

Bottom Plumbing, Start Serial: 5634

1шт.

25

86986127

SUPPORT

Main Plumbing

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

26

87267377

SUPPORT

Valves, Start Serial: 5634

1шт.

28

NS

NOT SERVICED

Group, Sump Valves

1шт.

See Fig. 09-009

1шт.

29

86986136

STRAP

Sump Tee, Long

1шт.

30

BN324529

HOSE,2.00" ID x 16.00"

EPDM

1шт.

31

BN326025

HOSE,3.00" ID BULK

S/D, EPDM

1шт.

Cut 16" from bulk roll

1шт.

32

BN321054

HOSE,1.50" ID x 72.00"

Kanaflex

1шт.

33

BN321967

1.5 X 46", Suction

1шт.

34

BN326025

HOSE,3.00" ID BULK

S/D, EPDM

1шт.

Cut 21.5" from bulk roll

1шт.

35

BN318119

HOSE,143.00"

EPDM

1шт.

Выбрано товаров: 38
