Запчасти Case IH SPX3200 (09-007) - PRODUCT PUMP GROUP Liquid Plumbing

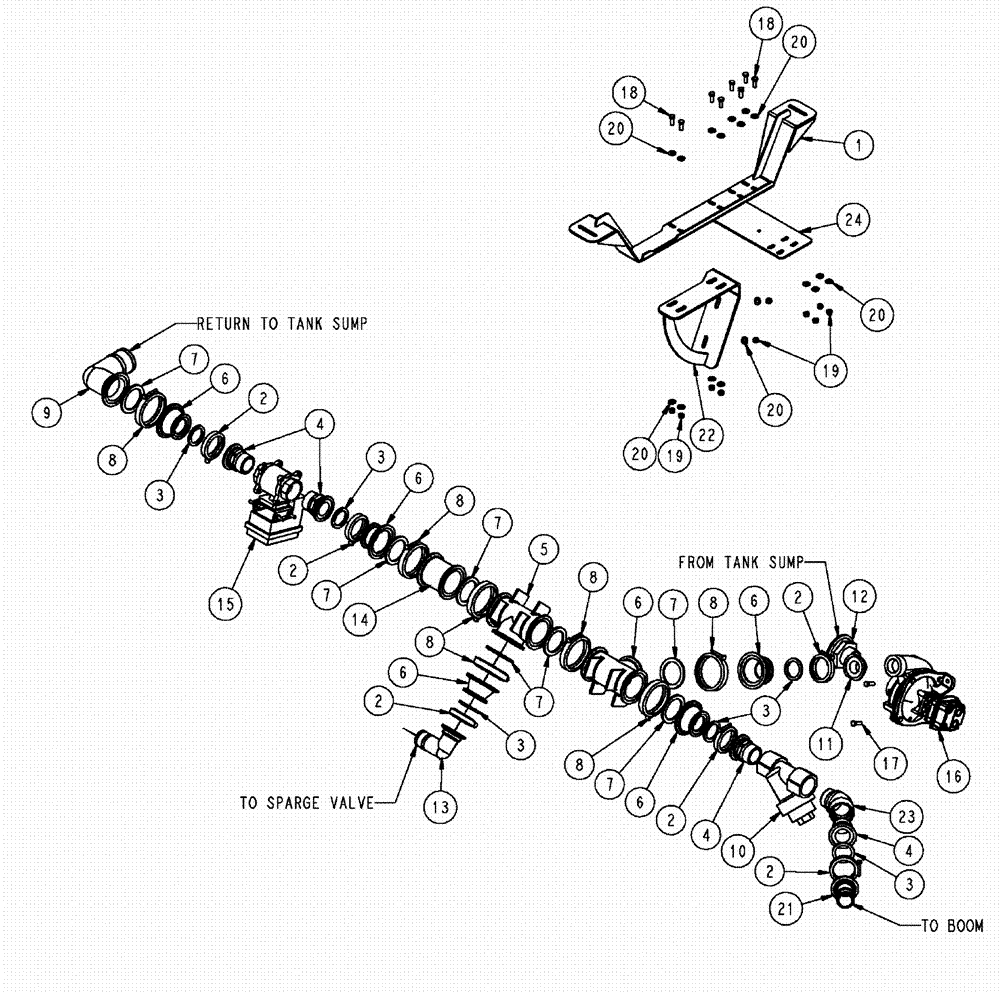

Схема запчастей Case IH SPX3200 - (09-007) - PRODUCT PUMP GROUP Liquid Plumbing
19
1
6
20
8
13
6
12
21
17
7
14
2
2
3
10
3
19
2
6
4
20
18
5
11
8
2
18
6
16
20
3
4
24
8
7
23
8
20
15
7
3
20
22
7
7
3
9
6
6
2
4
2
7
8
8

Артикул

Название

Примечание

Количество

1

87267143

BRACKET

Bottom Plumbing, Start Serial: 5634

1шт.

1

86986127

SUPPORT

Main Plumbing

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

6шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

6шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

4шт.

5

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

2шт.

6

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

5шт.

7

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

7шт.

8

BN321074

CLAMP,101.6mm

Manifold, 3"

7шт.

9

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

Barb-90, 3' X 3" H

1шт.

10

BN304320

FILTER STRAINER,2" x 2" Y Strainer

Line, 2, 12 Mesh

1шт.

11

BN322254

ADAPTER,2" Flange x 1 1/2" Male Thread SST

manifold 2 fp X 1.5 npt

1шт.

12

BN322930

MANIFOLD

MS, 3" Flange X 2"

1шт.

13

BN324065

FITTING,2" Full Port Flange x 2" 90 Degree Hose Barb Elbow

2" Full Port Flange X 2" HS

1шт.

14

BN324192

TUBE

Coupling, 3" Manifold Poly

1шт.

15

343087A1

VALVE

electrical, by-pass, 2" full

1шт.

16

344030A1

PUMP

Hypro HV with motor

1шт.

See Fig. 09-033

1шт.

17

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

18

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

20

BN50146

WASHER,3/8", Stainless

18шт.

21

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

22

87267146

MOUNTING PLATE

Product Pump, Start Serial: 5634

1шт.

22

86986986

MOUNTING PLATE

Pump, Valve

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

23

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 STR-2" NPT Poly

1шт.

24

87267854

BRACKET, SUPPORTING

Mount, Valve, Start Serial: 5634

1шт.

Выбрано товаров: 29
