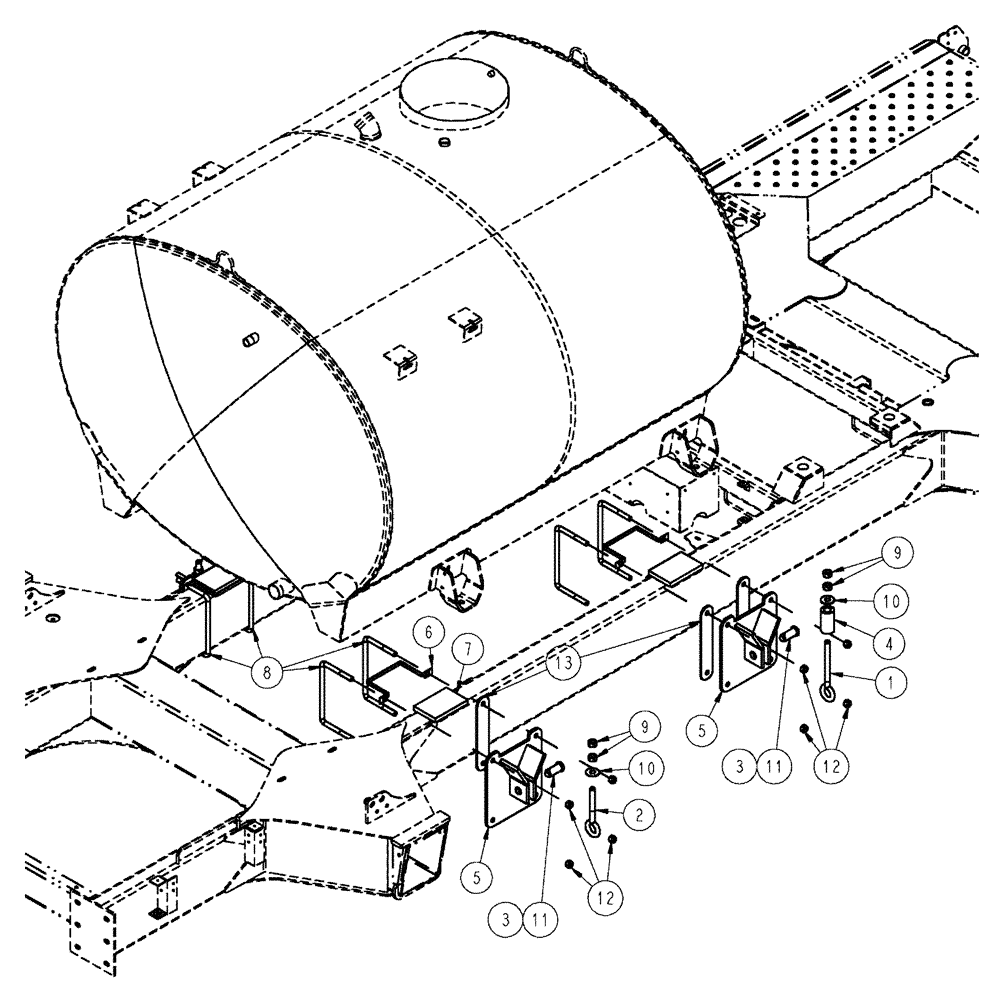

Запчасти Case IH SPX3200 (09-004) - MOUNTING GROUP, 1000 GALLON TANK Liquid Plumbing

1

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

2

BN21539

EYEBOLT

BOLT, EYE 3/4 X 6

2шт.

3

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

4

BN312850

SPRING

1" ID x 4" Lg-Die

2шт.

5

BN325925

BRACKET, SUPPORTING

Tank

4шт.

6

343010A1

STRAP

harness, tank pad 778D

4шт.

7

343014A1

BASE

pad, mount, tank front

4шт.

8

343924A1

U-BOLT

U, M16-2, 150 x 256

8шт.

9

86518194

NUT,3/4"-10, G8

8шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

8шт.

11

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

12

412066

NUT,M16 x 2.0, Cl 8

16шт.

13

86986975

SPACER

10" U-Bolt

6шт.
