Запчасти Case IH SPX3200 (09-002) - FILL GROUP, 2" RINSE Liquid Plumbing

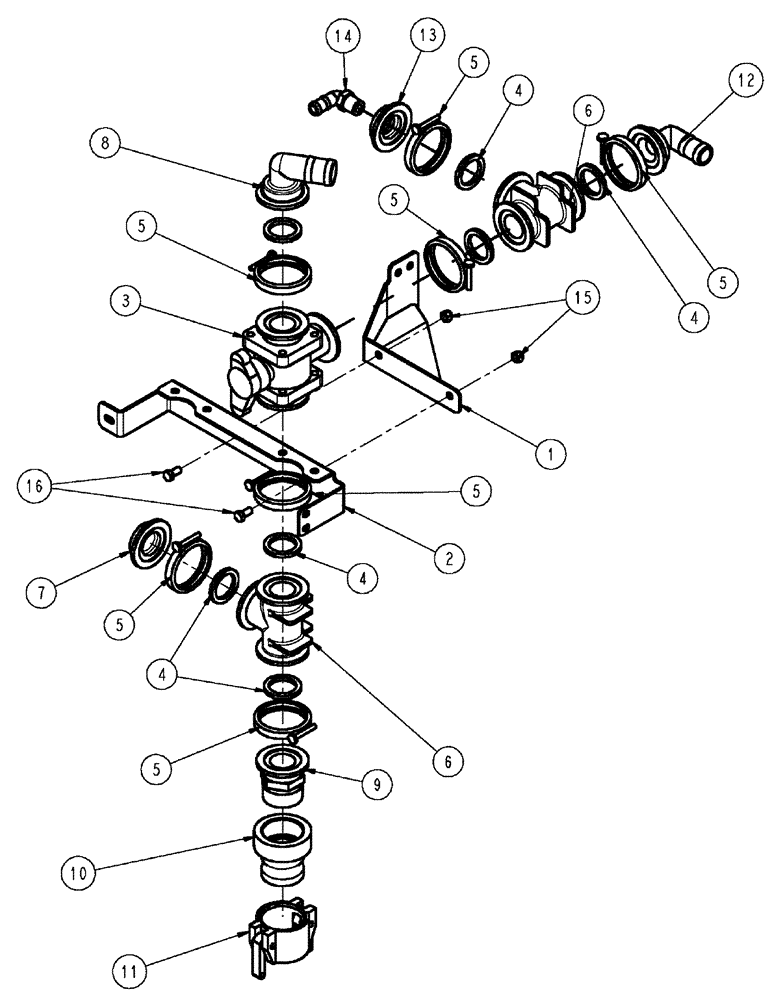

Схема запчастей Case IH SPX3200 - (09-002) - FILL GROUP, 2" RINSE Liquid Plumbing
7
5
1
4
5
5
16
11
12
4
10
5
6
4
13
5
3
6
15
8
5
4
14
9
5
2

Артикул

Название

Примечание

Количество

1

343423A1

MOUNTING PLATE

Rinse Fill, 2"

1шт.

2

343023A1

PLATE

Mount, Load Station

1шт.

3

BN324998

VALVE

Ball, 2" Flange x 2" Flange

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

7шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

7шт.

6

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

2шт.

7

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

8

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

9

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

10

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

11

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

12

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb, Start Serial: 5573

1шт.

12

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

13

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Poly

1шт.

14

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

16

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

Выбрано товаров: 18
