Запчасти Case IH SPX3200 (09-001) - PRESSURE FILL PLUMBING Liquid Plumbing

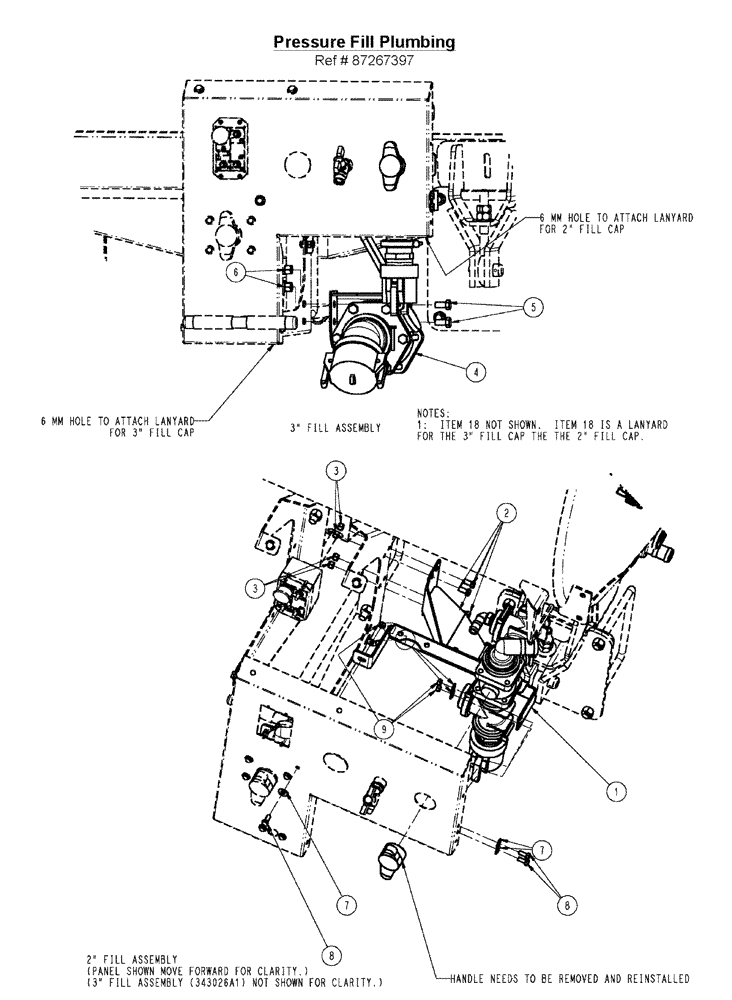

Схема запчастей Case IH SPX3200 - (09-001) - PRESSURE FILL PLUMBING Liquid Plumbing
1
4
7
7
3
3
9
5
2
8
8

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Fill Group, 2 " Rinse

1шт.

See Fig. 09-002

1шт.

2

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

NS

NOT SERVICED

3" Pressure

1шт.

See Fig. 09-003

1шт.

5

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

2шт.

6

BN320390

NUT

1/2"-13, TL, G5

2шт.

7

BN50142

WASHER,5/16", Stainless Steel

6шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

3шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.

12

BN320156

HOSE CLAMP

#24, Stainless Steel

1шт.

13

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

14

BN2397660

PLUG

Dash 2" #2403

1шт.

15

BN324269

HOSE CLAMP

#52, 304SS

1шт.

16

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

17

343747A1

HOSE

3/4" x 5" EPDM

1шт.

18

BN321087

STRAP

Lanyard, 11" Polyurethane

2шт.

Выбрано товаров: 18
