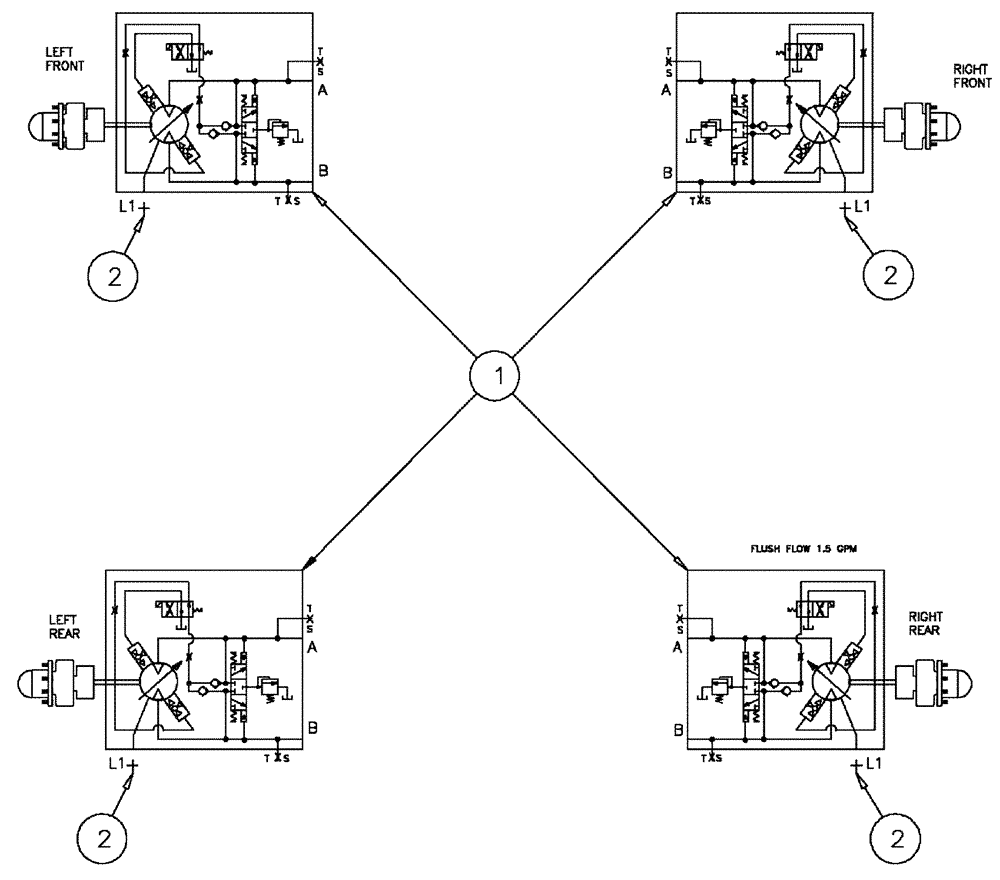

Запчасти Case IH SPX3200 (06-028) - WHEEL MOTOR GROUP Hydraulic Plumbing

1

87267021

MOTOR

90 Series, 55 cc, With M-Pack Connector

4шт.

See Fig. 06-029

1шт.

2

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

4шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

Not Shown

1шт.

Between Hub And Wheel Motor

1шт.
