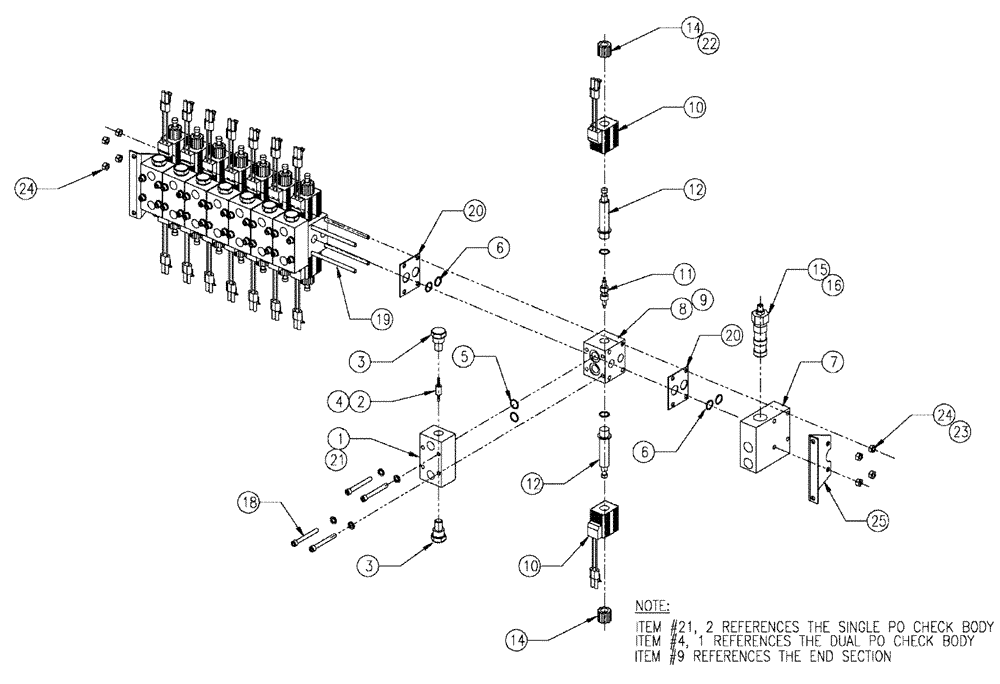

Запчасти Case IH SPX3200 (06-023) - VALVE 8-BANK DIRECTIONAL Hydraulic Plumbing

1

BN98677

BLOCK

For 29345A (Dual)

5шт.

2

BN98679

CHECK VALVE

Piston, Dual, 29345

5шт.

3

BN300970

CHECK VALVE,3/4" - 16

100 Lb. Wtrmn

14шт.

4

BN98680

PISTON

Check Valve Single, #29345

2шт.

5

BN98225

O-RING

Stacking Valve #29345

14шт.

6

BN98226

O-RING

Sandwich Valve #29345

16шт.

7

86986522

VALVE

Inlet Section

1шт.

8

BN66709

HYDRAULIC VALVE

Directional, Middle

7шт.

9

BN66710

CONTROL VALVE

Directional, End

1шт.

10

BN98222

COIL

W/Wire Lead & Pack-End

16шт.

15

86986520

COIL

lead wire, 12VDC

1шт.

16

86986519

SOLENOID VALVE

Waterman

1шт.

18

86986510

SCREW,Hex, 1/4" - 20 x 1 3/4"

1/4-20 X 1.75, SHCS, SS

28шт.

19

BN24156

THREADED TIE-ROD

1/4"-20 x 17-3/4"

4шт.

20

86986508

PLATE

Backing, Anodized

8шт.

21

BN318802

VALVE

Block Single Position Relay

2шт.

22

86986509

CAP

vinyl, valve bank

16шт.

23

BN50139

WASHER

1/4" spring lock

8шт.

24

280129

NUT,1/4"-20

8шт.

25

BN67858

MOUNTING PARTS

Waterman Valve

2шт.
