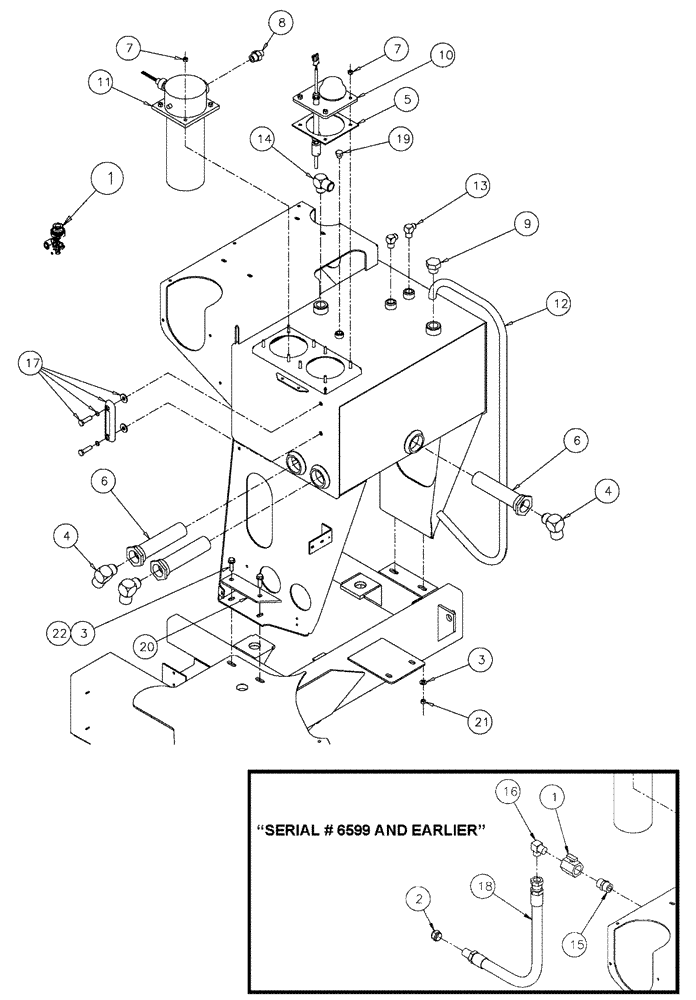

Запчасти Case IH SPX3200 (06-010) - OIL TANK GROUP Hydraulic Plumbing

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic, Start Serial: 6600

1шт.

1

BN53473

VALVE,1" NPT

SS-Ball (2-Way) 1" NP

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

4

BN302577

ELBOW

1-11/16-12 ORFS x 1-5/8-12 ORB

3шт.

5

BN302982

GASKET,3.17mm Thk

Cover Plate

1шт.

6

BN303528

STRAINER ASSY.

32MB X -20FB, 100

3шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

9

BN60479

PLUG

1 5/16-12 O-Ring-Hex

1шт.

10

BN322802

SWITCH

Level Temp Grp

1шт.

See Fig. 06-011

1шт.

11

BN306030

FILTER

Assembly In Tank

1шт.

See Fig. 06-026

1шт.

BN311360

INDICATOR

Return Line

1шт.

Parts Of Assembly Filter In Tank P/N BN306030

1шт.

12

87270551

TANK

Oil, Start Serial: 6600

1шт.

12

BN322808

RESERVOIR, HYDRAULIC

Oil Tank

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

13

BN445001

FITTING

12Mj-12Mb X 90

2шт.

14

BN51621

FITTING

16Mj-16Mb X 90

1шт.

15

BN51656

ADAPTER

FT, STR, 1 NPTF, Male

1шт.

16

BN53809

ELBOW

Adapter, 90°, 1" NPT x 1/16" JIC

1шт.

17

BN322594

GAUGE

sight with temperature

1шт.

18

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

1шт.

19

BN446048

PLUG

Hex O-Ring, -6, 9/16-18

1шт.

20

BN300172

PLATE

2шт.

21

100038

NUT,M12 x 1.75, Cl 8

4шт.

22

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

87266217

DECAL

Oil Drain, Start Serial: 6600

1шт.

Not Shown

1шт.
