Запчасти Case IH SPX3200 (06-001) - STEERING CONTROL GROUP Hydraulic Plumbing

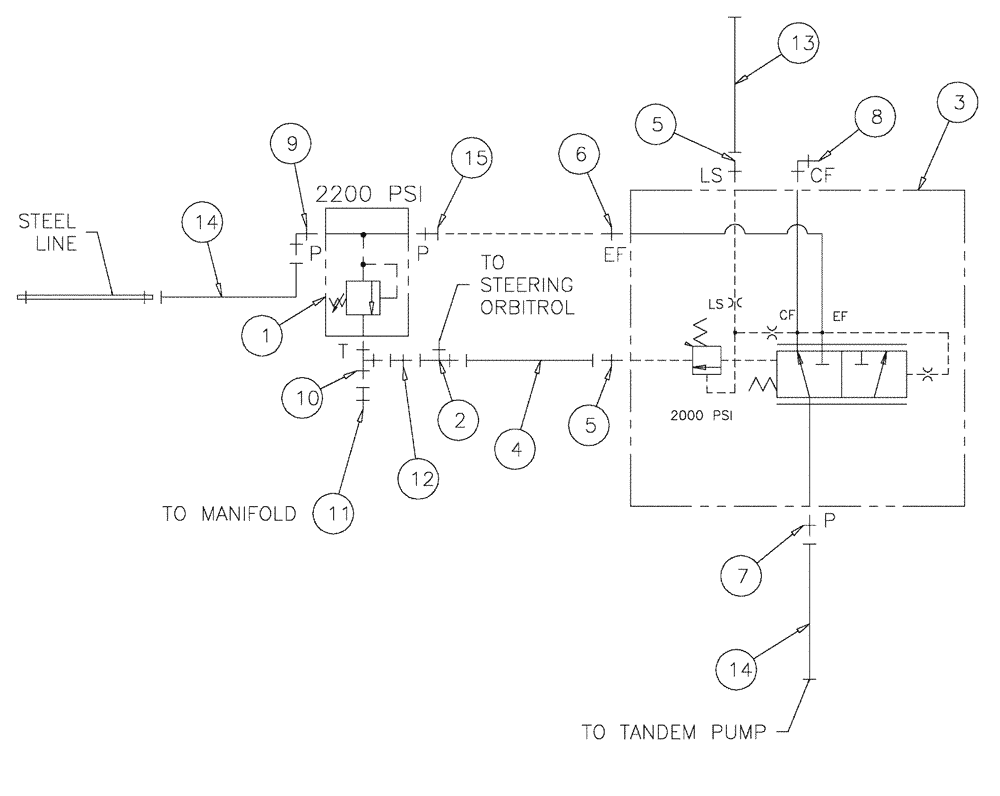

Схема запчастей Case IH SPX3200 - (06-001) - STEERING CONTROL GROUP Hydraulic Plumbing
3
15
4
1
8
2
6
9
14
13
14
10
5
11
12
5
7

Артикул

Название

Примечание

Количество

1

BN29234

VALVE PRESSURE RELIE,1-1/16" - 12

O-Ring Port

1шт.

2

BN316059

FITTING

6MJ-6FJ-6MJ

1шт.

3

BN323098

VALVE

Priority, LS

1шт.

4

BN323229

HOSE

Assembly, 4 X 18"

1шт.

5

BN444005

FITTING

Adapter 37 Flare04-04

2шт.

6

BN444007

O-RING

Adapert 37 Flare12-10

1шт.

7

BN444008

FITTING

8MJ-10MB

1шт.

8

BN53594

FITTING

8MJ-8MD X 90

1шт.

9

BN445006

FITTING

8Mj-12MD X 90

1шт.

10

BN51536

PIPE FITTING

Tee--12O-Ring X 12 JIC

1шт.

11

BN53715

REDUCER

12Fj-8Mj

1шт.

12

BN53716

FITTING

Reducer-1 1/16-12 X 9/16-18

1шт.

13

BN54178

HOSE,6.35mm ID x 1676.4mm L, SAE 100R1

1/4" x 66", 100R1

1шт.

14

BN54183

HOSE,0.50" ID x 34.00", SAE 100R2

2шт.

15

BN57224

FITTING

12MB-12FJX

1шт.

Выбрано товаров: 15
