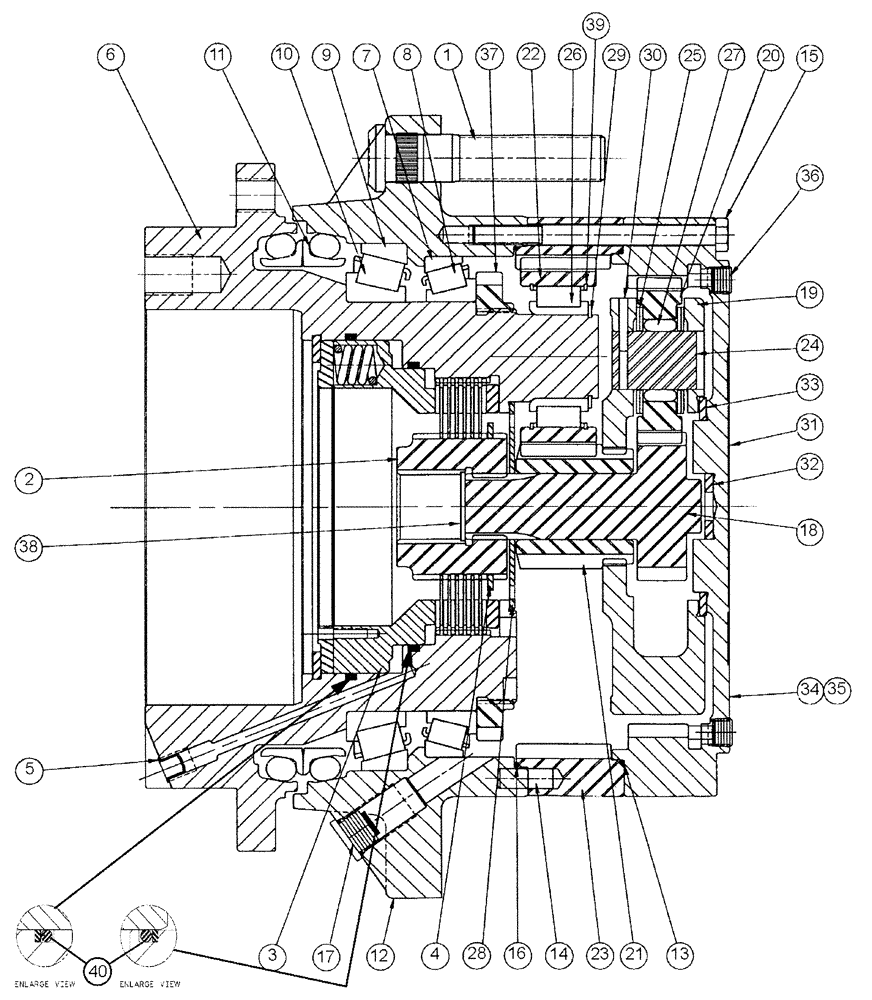

Запчасти Case IH SPX3200 (05-001) - HUB ASSEMBLY 22:1, 27:1 Hub, Wheel & Tires

1

BN311380

STUD

10шт.

2

BN318439

COUPLING

1шт.

3

BN311382

BRAKE

Input Kit, W/ Discs

1шт.

4

BN311383

SNAP RING

Ext.

1шт.

5

BN311384

PLUG

Plastic

1шт.

6

BN319366

SPINDLE

Spindle, Hub 22:1

1шт.

7

BN311386

BEARING, CUP

tapered-cup

1шт.

8

BN311387

ROLLER BEARING

Tapered-Cone

1шт.

9

BN311388

BEARING, CUP

Tapered-Cup

1шт.

10

BN311389

ROLLER BEARING

Tapered-Cone

1шт.

11

BN311390

SEAL

Face

1шт.

12

BN311391

HOUSING

1шт.

13

BN311392

O-RING

1шт.

14

BN311393

PIN

Dowel

2шт.

15

BN311394

BOLT

Hex-Unc

20шт.

16

BN311395

O-RING

1шт.

17

BN311396

PLUG

Pipe, Special

2шт.

18

BN311397

GEAR

Sun (22:1)

1шт.

18

BN311398

GEAR

Sun (27:1)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

19

BN311399

HUB CARRIER

(22:1)

1шт.

19

BN311400

HUB CARRIER

(27:1)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

20

BN311410

PLANETARY GEAR

(22:1)

3шт.

20

BN311411

PLANETARY GEAR

(27:1)

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

21

BN311413

GEAR

Sun

1шт.

22

BN318442

GEAR, PLANETARY

GEAR, PLANET

3шт.

23

BN311415

GEAR, RING

RING, GEAR

1шт.

24

BN311416

SHAFT

Planet

3шт.

25

BN311417

WASHER, THRUST

12шт.

26

BN318443

BEARING, ROLLER, CYL

Bearing, Cylinder

3шт.

27

BN311419

BEARING, NEEDLE

57шт.

28

BN311420

SPACER

Thrust

1шт.

29

BN311421

RETAINER

Ring-Ext

3шт.

30

BN311422

GROOVED PIN

3шт.

31

BN311423

COVER

Plate

1шт.

32

BN311424

WASHER, THRUST

1шт.

33

BN311425

THRUST WASHER

1шт.

34

BN311426

PLATE

ID

1шт.

35

BN311427

SCREW

Drive

2шт.

36

BN311430

PLUG

Pipe, Mangnetic, NPT, Used on Early SN Hubs

3шт.

36

47370292

MAGNETIC PLUG

O Ring Style, Used on Late SN Hubs

3шт.

37

BN311431

BEARING LOCK NUT

1шт.

38

BN318444

RETAINER

Ring-INT.

1шт.

39

BN318445

RETAINER

Ring-EXT.

6шт.

40

86986325

O-RING

2шт.

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

68шт.

Not Shown

1шт.

BN305432

ADAPTER

4 MFFOR-M12 x 1.5

4шт.

Not Shown

1шт.

BN306152

SPACER

Wheel Hub

4шт.

Not Shown

1шт.

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.

Not Shown

1шт.

87027134

FLUID

Oil, SAE 85W140, MS1616NH 1QT

6шт.

Not Shown

1шт.
