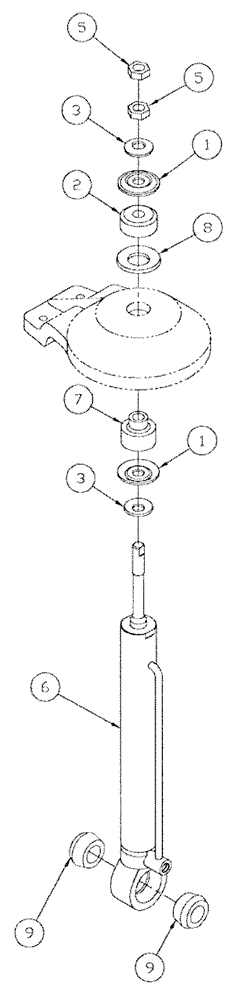

Запчасти Case IH SPX3200 (07-009) - ACTIVE SUSPENSION Cylinders

1

BN313440

WASHER

Retainer

2шт.

2

BN313532

BUSHING,16.26mm ID x 49.4mm OD x 27.43mm L

Urethane (Red)

1шт.

3

BN313204

SPRING WASHER

Spring Harden 5/8

2шт.

5

329-1510

JAM NUT,Jam, 5/8"-18, G8

2шт.

6

NSS

NOT SOLD SEPARAT

Cylinder Hydraulic 1.38 X 10.38 X.88

1шт.

See Fig. 07-010

1шт.

7

BN321661

BUSHING

Pilot Long Shock

1шт.

8

BN321990

WASHER

Spring Harden 1"

1шт.

9

87269274

BUSHING,25.4mm ID x 48.01mm OD x 25.15mm L

Bushing, Lower Shock, Start Serial: 6223

2шт.

BN313249

HYDRAULIC CYLINDER

COMPLETE ASSY

1шт.

BN313249R

REMAN-HYD CYLINDER

SPX3200 SPRAYER, COMPLETE ASSY (6/01-12/04)

1шт.

BN313249C

CORE-HYD CYLINDER

Return Number

1шт.
