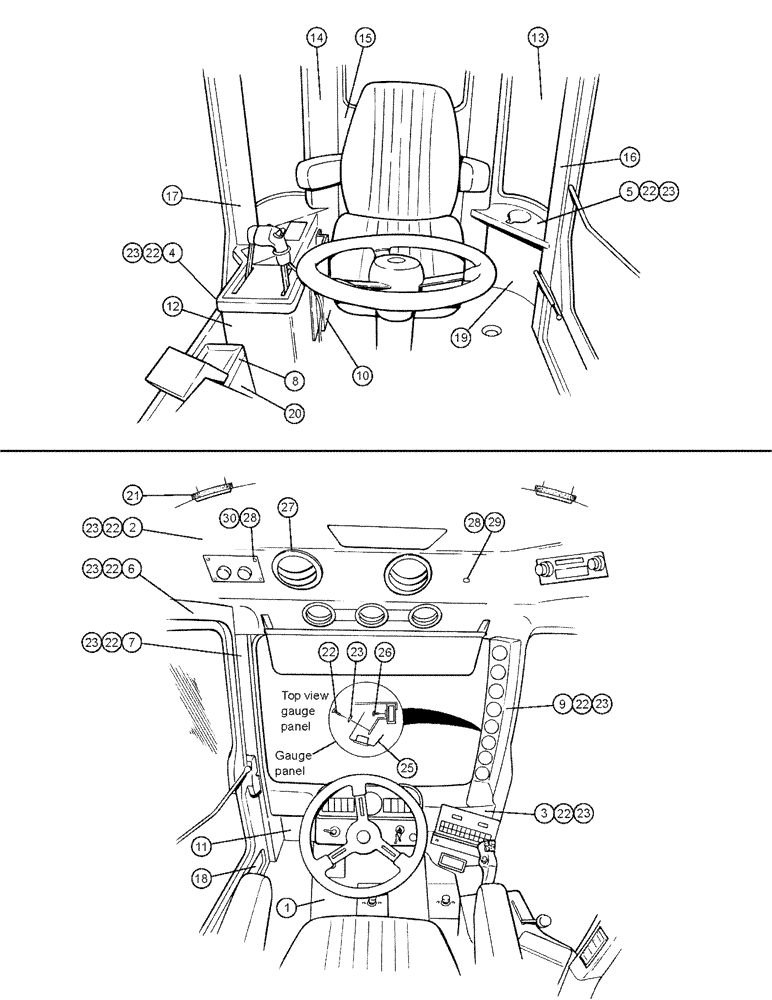

Запчасти Case IH SPX3200 (01-012) - UPHOLSTERY Cab Interior

1

BN68886

FLOOR MAT

Molded

1шт.

2

BN323881

LINER

head, molded 4" louver

1шт.

3

BN68888

CONSOLE

Molded Dash

1шт.

4

BN311765

COVER

Molded control, 7 bank

1шт.

5

BN68890

COVER

Molded Rear Corner

1шт.

6

BN68891

FRAME

Molded Door

1шт.

7

BN68892

COVER

Molded Front Left

1шт.

8

BN68893

HOLDER

Pencil

1шт.

9

BN68894

CONSOLE

Front Gage

1шт.

10

369937A1

NET

Cargo

1шт.

369929A1

FASTENER

Christmas Tree

5шт.

Associated Part Of Net, Cargo, P/N 369937A1

1шт.

11

BN68896

FOAM

Cab Front Fire Wall

1шт.

12

BN68897

FOAM

Control Side Lower PL

1шт.

13

BN68898

FOAM

LH Rear Post Cover

1шт.

14

BN68899

FOAM

RH Rear Post Cover

1шт.

15

BN68900

FOAM

Rear Middle Panel

1шт.

16

BN68901

FOAM

Left Side Post Cover

1шт.

17

BN68902

FOAM

RT Side Post Cover

1шт.

18

BN68903

FOAM

Door Panel

1шт.

19

BN68904

FOAM

Lower Rear LH

1шт.

20

BN68905

FOAM

Lower Front RH

1шт.

21

BN304445

GASKET

1" Foam

2шт.

22

BN69601

SCREW,#10 x 1"

#10 X 1 FL HD CTSK BK

41шт.

23

BN69602

WASHER

#10 CNTR SK BK

37шт.

26

BN50944

SCREW,Sl Pan Hd, #10 x 1/2"

#10 x .5, PH, SL

2шт.

27

BN68906

GASKET,12.7mm Thk

1/2" foam, 3", 4" louver

2шт.

27

BN311023

VENT

4" diamter, with wire clip

2шт.

28

BN315877

SCREW,1/4" - 20 x 1"

1/4-20 X 1 "Phil, TH, SS, BLK

5шт.

29

BN315876

WASHER

1/4 Fender, x 1.25SS BLK

1шт.

30

BN315875

WASHER

1/4, FW, G5, BLK. ZINK

4шт.
