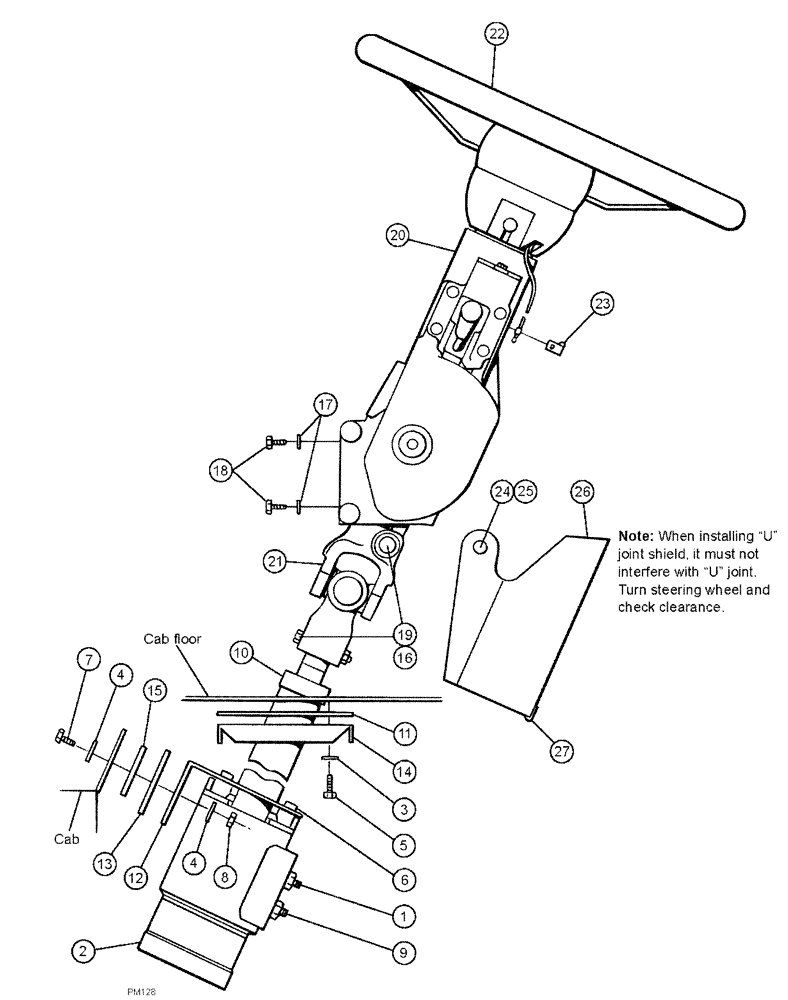

Запчасти Case IH SPX3200 (01-011) - STEERING ASSEMBLY, {BN323221}, {BN69008} Cab Interior

1

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

2

BN323097

PUMP

Orbitrol, 11.3 Disp

1шт.

3

BN50141

WASHER

5/16, FW, G5

4шт.

4

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

5

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

50304

BOLT Hex, 1/2"-20 x 1 1/2", G5, Full Thd

2шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

BN57226

ADAPTER

fitting, o-ring, 37 FL 8-6S

2шт.

10

BN65948

STEERING COLUMN

18"

1шт.

11

BN66268

RUBBER SEAL

RUBBER SEAL 1/8" EPDM 5 X 6

1шт.

12

BN66273

MOUNTING PARTS

1/4 Hrs 6.87 X 8

1шт.

13

BN66274

RUBBER SEAL

1/4 EPDM, 2.5 x 8

1шт.

14

BN66276

MOUNTING PARTS

14GA HRS 6.25 X 7.25

1шт.

15

BN69007

SPACER

Plate

1шт.

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

16

88902

NUT,3/8"-16

2шт.

18

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

19

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

BN50145

WASHER

3/8, FW, G5

4шт.

20

BN66111

STEERING COLUMN

Tilt/Tele

1шт.

BN320401

LEVER

Tilt Steering

1шт.

Parts Of Steering Column Tilt/Tele, P/N BN66111

1шт.

BN98904

ELECTRICAL WIRE

WIRE Horn (Steer Column)

1шт.

Parts Of Steering Column Tilt/Tele, P/N BN66111

1шт.

21

BN66112

UNIVERSAL JOINT

Steering Column

1шт.

22

BN310333

CAP

Steering Wheel, Black

1шт.

BN67057

STEERING WHEEL

3 Spoke, 16"

1шт.

Parts Of Cap, Steering Wheel, Blk, P/N BN310333

1шт.

23

BN68814

CLAMP

Vinyl, 1/8" Dia.

1шт.

24

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

2шт.

25

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

26

BN66265

SHIELD

16 GA Hrs, 6.75 x 13

1шт.

27

BN69875

SEAL

Clip On

1шт.
