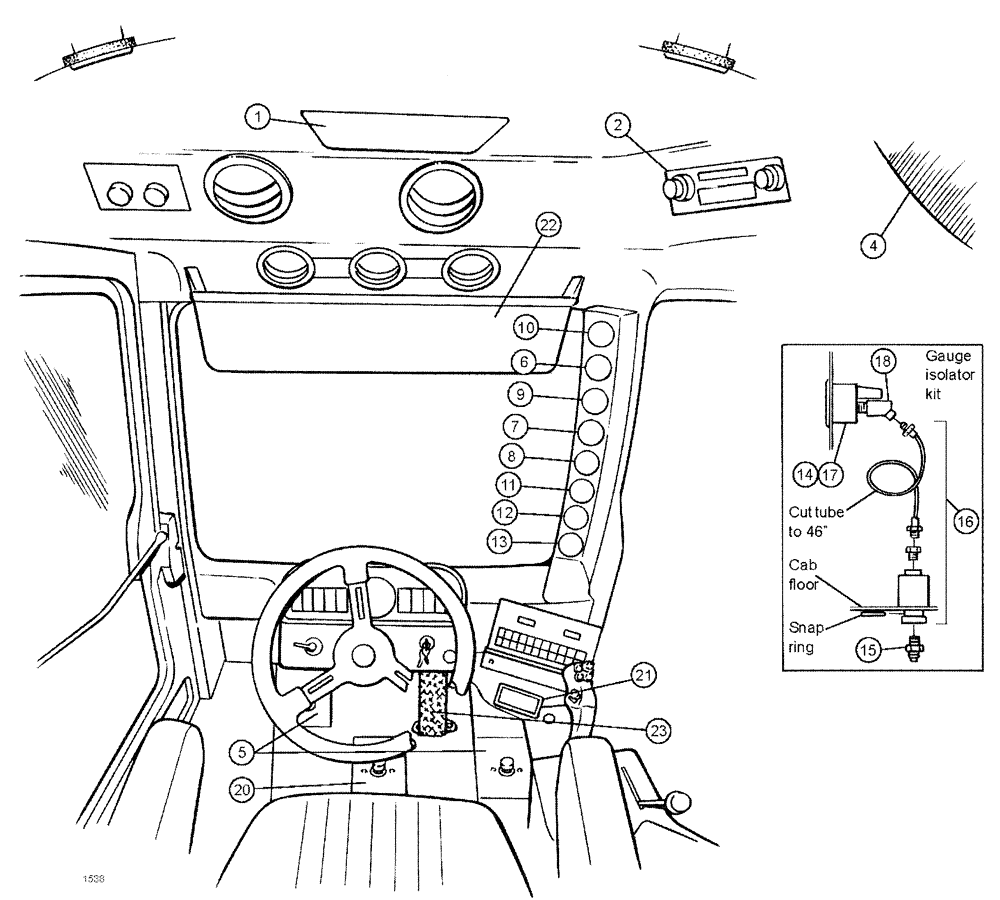

Запчасти Case IH SPX3200 (01-009) - GAUGES, ACCESSORIES Cab Interior

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

BN300876

BULB

Dome, 12 volt

1шт.

Service Parts For Ref. 1

1шт.

2

BN323959

RADIO

Radio, Din

1шт.

BN57222

ANTENNA

Radio

1шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN315877

SCREW,1/4" - 20 x 1"

1/4-20 X 1 "Phil, TH, SS, Blk

4шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN323695

BRACKET, SUPPORTING

SPX

1шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN323834

PLATE

radio mount

1шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN50146

WASHER,3/8", Stainless

2шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN52339

BOLT

3/8-16 X .5, HH, SS

2шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN55359

LOCK NUT,1/4"-20, SS

4шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

BN69006

BRACKET

Radio Antenna

1шт.

Associated Part Of Radio, Din Mount, P/N BN323959

1шт.

4

BN57220

SPEAKER

JVCc (Set Of 2)

1шт.

5

BN29522

SWITCH

Dimmer Floor Mount

1шт.

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

4шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

6

BN67301

FUEL GAUGE

Fuel Level 12V. N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 6

1шт.

7

BN67302

ELECTRICAL GAUGE

Temp 280 Deg. 12V N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 7

1шт.

8

BN67303

ELECTRICAL GAUGE

Oil Press. 100 PSI

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 8

1шт.

9

BN67304

ELECTRICAL GAUGE

Volt 12Vdc/10-16

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 9

1шт.

10

326944A1

HOURMETER

LCD, 12V

1шт.

11

BN68268

GAUGE

Boom pressure

1шт.

Includes Refs. 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Sparge pressure

1шт.

Includes Refs. 15, 16, 17 & 18

1шт.

BN309417

FITTING

HB, 1/8Mptx1/4HS, Nyl

1шт.

Parts Of Assy-Gauge-Sparge Press, P/N BN68269

1шт.

13

BN68270

ELECTRICAL GAUGE

Assy-Gauge-Foam Pressure

1шт.

Includes Refs. 18 & 19

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

Use #BN301819 Because Of Internal Interference With Longer Bulb

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts For Ref. 14

1шт.

15

BN441001

ADAPTER

Pipe-37 Flare 06-04

1шт.

16

BN67300

ISOLATOR

Gauge-Isolator Kit

1шт.

17

BN304843

GAUGE

Pressure, Sparge

1шт.

Use #BN301819 Because Of Internal Interference With Longer Bulb

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts For Ref. 17

1шт.

18

BN68256

ELBOW

Elbow-45 Deg.1/8NPT-Female

1шт.

19

BN67307

ELECTRICAL GAUGE

Foam Press. 0-80

1шт.

Use #BN301819 Because Of Internal Interference With Longer Bulb

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts For Ref. 19

1шт.

20

BN68440

SWITCH

Traction Assist

1шт.

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

4шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

21

BN66127

ASH TRAY

1шт.

22

NS

NOT SERVICED

Telescoping Group

1шт.

22a

82004428

SUN CURTAIN

Visor

1шт.

Associated Part Of Visor, Telescoping Group

1шт.

22b

BN304238

MOUNTING PARTS

Bracket

2шт.

Associated Part Of Visor, Telescoping Group

1шт.

22c

BN314731

BRACKET

Visor, RH

1шт.

Associated Part Of Visor, Telescoping Group

1шт.

22d

BN314732

BRACKET

Visor, LH

1шт.

Associated Part Of Visor, Telescoping Group

1шт.

22e

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

Associated Part Of Visor, Telescoping Group

1шт.

22f

BN312062

MOUNTING PARTS

Bent Bracket

1шт.

Associated Part Of Visor, Telescoping Group

1шт.

23

BN307716

PACKAGE

Service Brake

1шт.

See Fig. 06-006

1шт.
