(10-002) - EXTERIOR DECALS-GRAPHICS

Запчасти Case IH SPX3200 (10-002) - EXTERIOR DECALS-GRAPHICS (13) - DECALS

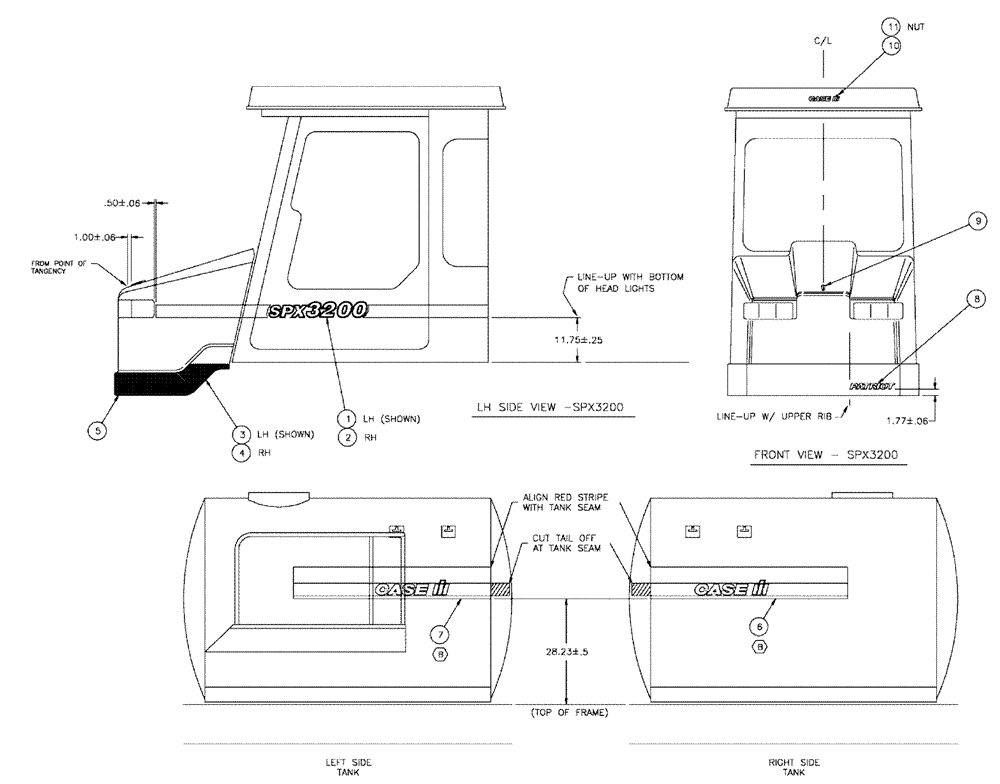

Схема запчастей Case IH SPX3200 - (10-002) - EXTERIOR DECALS-GRAPHICS (13) - DECALS
9
1
4
6
5
2
3
8
7
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN325185

DECAL

SPX3200, LH

1шт.

2

BN325186

DECAL

SPX3200, RH

1шт.

3

336622A1

DECAL

LH, front hood

1шт.

4

336623A1

DECAL

RH, front hood

1шт.

5

336625A1

DECAL

mid stripe, front hood

1шт.

6

336632A1

DECAL

Liquid Tank LH Rear St

1шт.

7

336608A1

DECAL

Liquid Tank RH Rear St

1шт.

8

337687A1

DECAL

emblem, "Patriot"

1шт.

9

1968108C2

TRIM

Trim, Hood Sight

1шт.

10

186882A1

EMBLEM CASE/IH

cast nameplate

1шт.

11

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.
