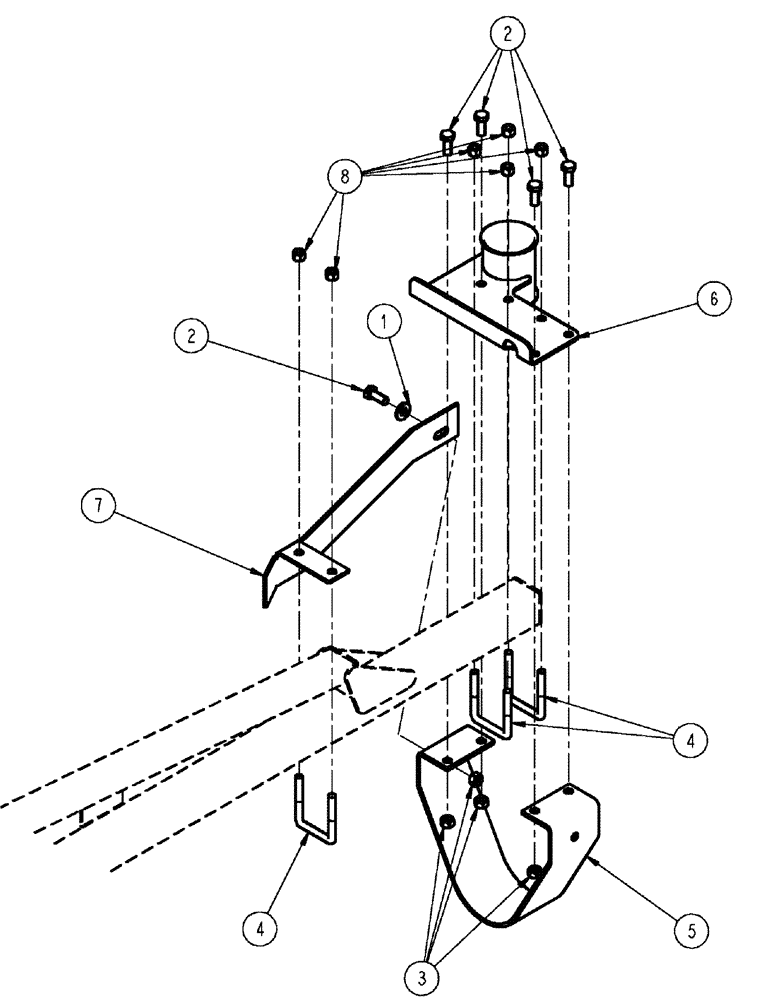

Запчасти Case IH SPX3200 (08-026) - SKID GROUP, RIGHT (09) - BOOMS

1

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

10шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

4

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

6шт.

5

BN313335

SKID/SHOE

Boom Breakaway

2шт.

6

87266615

MOUNTING PARTS

Outer Right Frame Drop

2шт.

7

BN319662

GUARD

RH Outer Boom Skid

1шт.

8

88902

NUT,3/8"-16

12шт.
