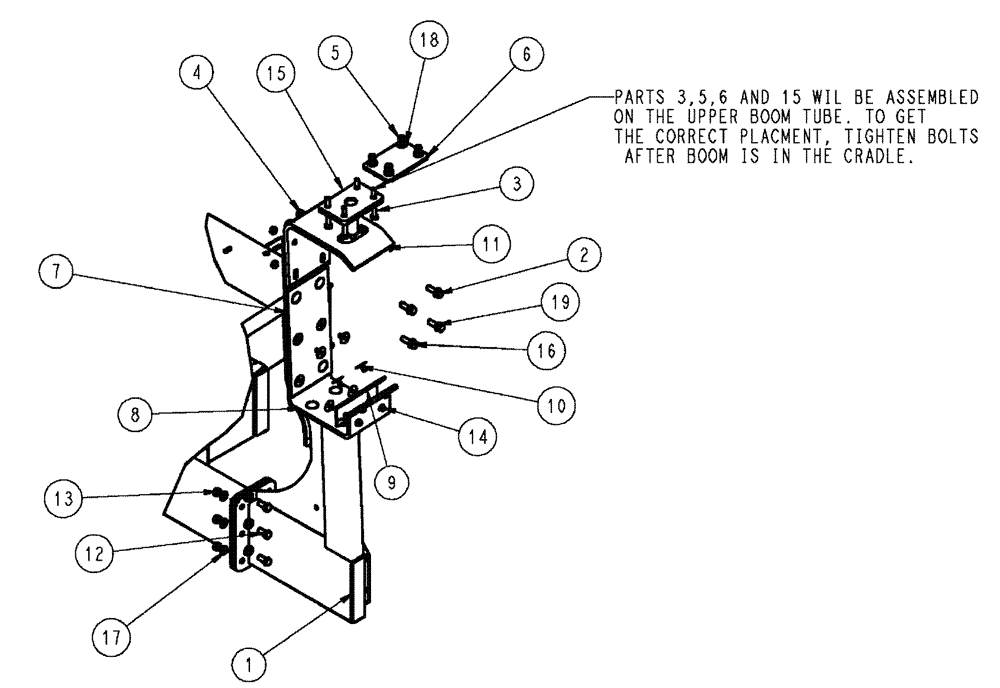

Запчасти Case IH SPX3200 (08-011) - RH CRADLE GROUP (09) - BOOMS

1

344352A1

CRADLE

Boom Base RH

1шт.

2

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

3

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

4

100038

NUT,M12 x 1.75, Cl 8

4шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

86986338

PLATE

Retaining Bolt

1шт.

7

BN314797

PAD

Cradle Side

1шт.

8

BN314802

PAD, RUBBER

Cradle Lower

1шт.

9

BN310397

PAD

Cradle, Plastic

1шт.

10

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

14шт.

11

86986976

SUPPORT

Upper Boom Mount RH

1шт.

12

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

6шт.

13

86992215

LOCK NUT,1/2"-13, GC

6шт.

14

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

14шт.

15

86986337

PIN

Retaining

1шт.

16

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

17

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

12шт.

18

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.
