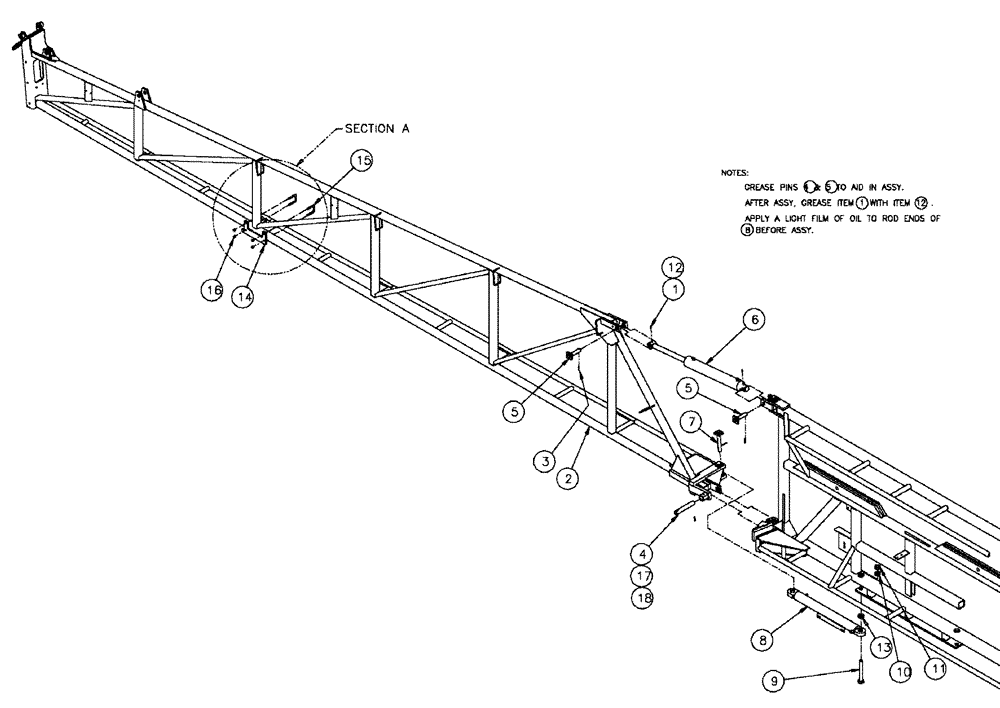

Запчасти Case IH SPX3200 (08-009) - BOOM GROUP, LH-INNER-60 STD (09) - BOOMS

1

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

2

87266658

BOOM

LH inner, (60') std

1шт.

3

BN148976

PIN, ROLL

1/4" x 1 3/4"

3шт.

4

87266671

PIN,31.75mm OD x 254mm L

Pivot (Inner Boom)

1шт.

5

BN66860

PIN

1.00 x 4.00

2шт.

6

BN323172

CYLINDER ASSY.

HYD 3.00 X 18 X 1.50

1шт.

See Fig. 07-006

1шт.

7

BN324141

PIN

boom pivot

1шт.

8

87266302

CYLINDER

Boom Pivot LH

1шт.

See Fig. 07-004

1шт.

87266302R

REMAN-HYD CYLINDER

SPX3200 SPRAYER (6/01-12/04)

1шт.

87266302C

CORE-HYD CYLINDER

Return Number

1шт.

9

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

1шт.

10

BN50092

NUT

Hex, 1"-8, Plated, G5

1шт.

11

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

12

BN55015

NIPPLE, LUBE

NIPPLE Lithium 12, Grade#2, 0.1

1шт.

13

BN68753

SPACER

1 7/8 X 7/16 X 1/2

1шт.

14

BN319291

CRADLE

Boom Lock

1шт.

15

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

17

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

18

88902

NUT,3/8"-16

1шт.
