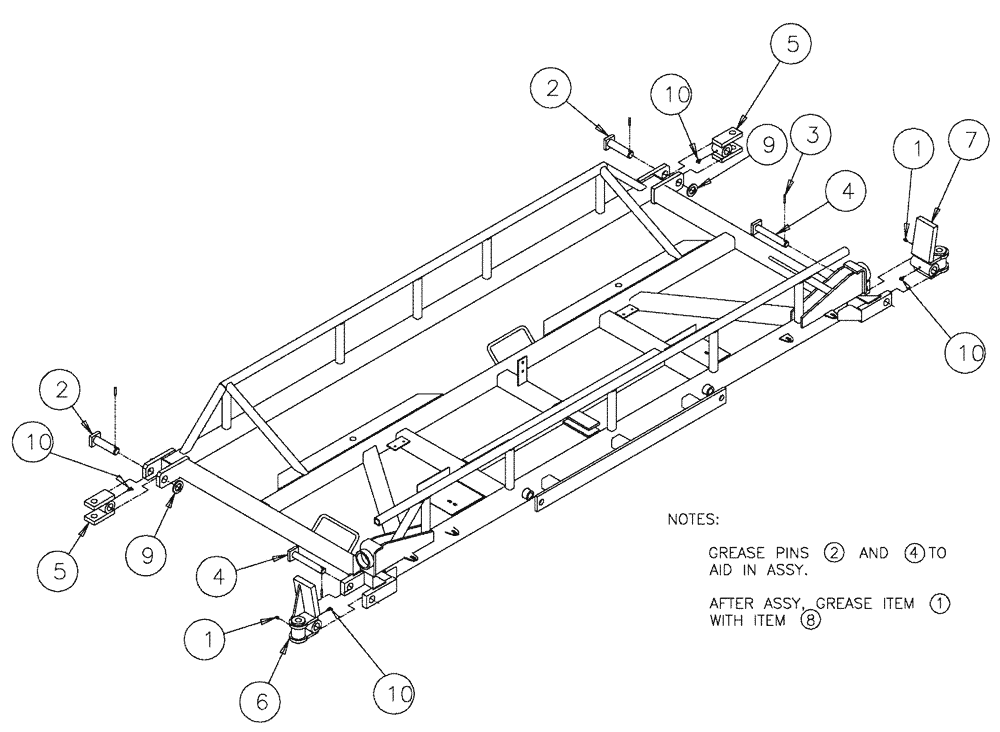

Запчасти Case IH SPX3200 (08-005) - PIVOT GROUP, CTR SEC.-1.25" (09) - BOOMS

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

3

BN148976

PIN, ROLL

1/4" x 1 3/4"

4шт.

4

BN322485

PIN

Boom Pivot

2шт.

5

BN66521

HINGE

Upper Boom

2шт.

6

342089A1

BRACKET

pivot, LH (BM) 1.25"

1шт.

7

342088A1

BRACKET

pivot, RH (BM) 1.25"

1шт.

9

87016611

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

2шт.

10

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

4шт.
