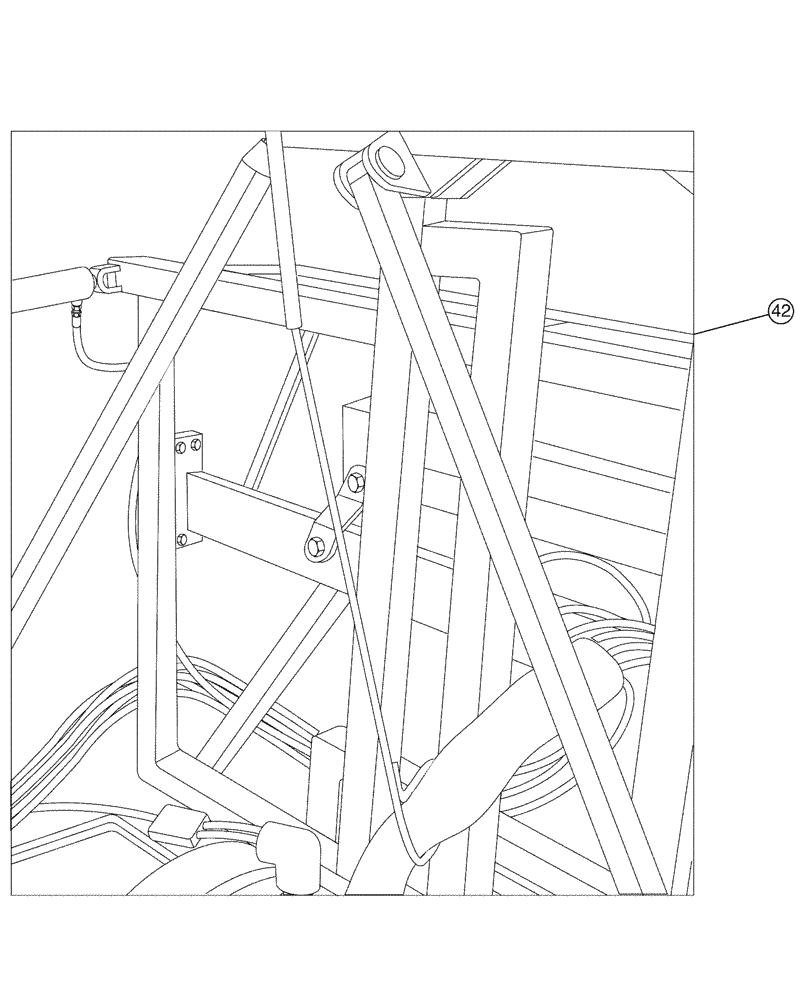

Запчасти Case IH SPX3200 (08-002[02]) - MAST GROUP (09) - BOOMS

2

BN21197

SHAFT

1" x 36"

1шт.

3

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

5

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

6

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

7

BN325807

BRACKET

Support, Boom Mast

1шт.

9

BN314912

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 1270mm Stroke

2.5 x 50 x 1.25, See Fig 07-02

1шт.

10

BN323885

SUPPORT

Boom

2шт.

11

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

12

BN50092

NUT

Hex, 1"-8 UNC, Plated, G5

5шт.

13

87553819

JAM NUT

1"-8 Hex, Jam

11шт.

14

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

20шт.

15

BN247111

WASHER

5/8, G8

11шт.

16

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

23шт.

17

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

18

BN50986

BOLT

1/2-13 X 4.5, HH, G8

4шт.

19

BN50363

BOLT

1-14 X 6, HH, 5, Plate

4шт.

20

BN300176

WASHER

Flat, 1/2, G8

32шт.

21

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

22

BN50315

BOLT

5/8-11 X 2, HH, G5

12шт.

23

BN322687

LINKAGE

5/8-11 Top, G5, PL

12шт.

24

BN313898

NUT

1/2-13, NLN, G8

16шт.

25

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

26

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

27

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

4шт.

28

BN66516

BOOM

Center Section 90'

1шт.

29

87270296

BRACKET

Mount, Center Section

4шт.

BN67049

HANGER

Mount Center Section

4шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

30

87271615

SLIDE

Assembly

2шт.

32

BN325829

HANGER

Slide Rail

1шт.

33

BN318505

RACK

Boom

1шт.

34

BN325812

BRACKET

Mount, ADJ (Uniball)

1шт.

35

439-52064

HEADED PIN,1 1/4" x 4"

, Start Serial: 5765

2шт.

342083A1

PIN

mast support

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

36

87016611

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

3шт.

37

95-81139

WASHER,1.31" ID x 2" OD x 0.11" Thk

3шт.

38

BN50625

COTTER PIN

1/4 X2

2шт.

39

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

40

426-1632

BOLT,Hex, 1" - 8 x 2", Gr 8

1шт.

41

BN313099

MOUNTING PARTS

SMV Group, Sprayer

1шт.

See Fig. 11-018

1шт.

42

87266267

HOSE

Hanger Assembly

1шт.

See Fig. 08-003

1шт.
