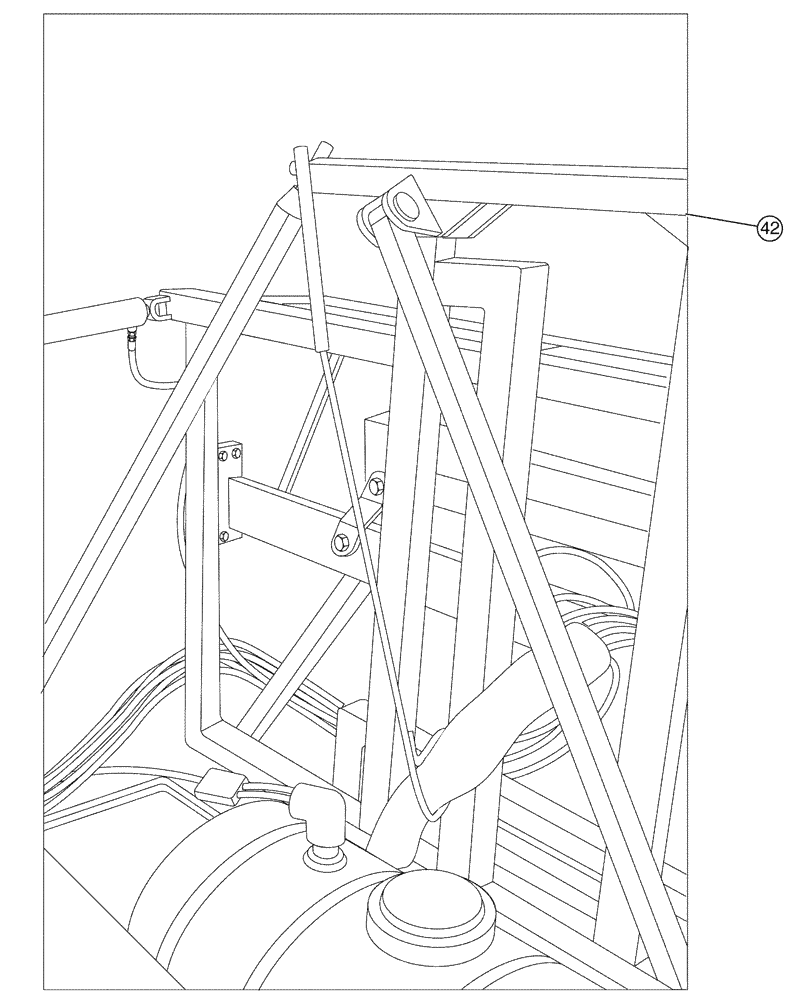

Запчасти Case IH SPX3200 (08-001[02]) - MAST GROUP, 60 STD BOOM (09) - BOOMS

2

BN21197

SHAFT

1" x 36"

1шт.

3

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

5

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

6

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

7

BN325807

BRACKET

Support, Boom Mast

1шт.

9

BN317250

CYLINDER,Double Acting, 31.75mm Rod, 1270mm Stroke

HYD. 2.5 X 50 X 1.25

1шт.

342104A1

VALVE

Counterbalance 3000 psi

2шт.

Parts Of Cylinder, HYD. 2.5 X 50 X 1.25 Assembly., P/N BN317250

1шт.

BN314912

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 1270mm Stroke

2.5 x 50 x 1.25

1шт.

Parts Of Cylinder, HYD. 2.5 X 50 X 1.25 Assembly., P/N BN317250

1шт.

See Fig. 07-002

1шт.

10

BN323885

SUPPORT

Boom

2шт.

11

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

14

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

20шт.

15

BN247111

WASHER

5/8, G8

11шт.

17

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

18

BN50986

BOLT

1/2-13 X 4.5, HH, G8

4шт.

19

BN50363

BOLT

1-14 X 6, HH, 5, Plate

4шт.

20

BN300176

WASHER

Flat, 1/2, G8

32шт.

21

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

22

BN50315

BOLT

5/8-11 X 2, HH, G5

12шт.

23

BN322687

LINKAGE

Locknut, 5/8-11 Top, Grade 5, PL

12шт.

24

BN313898

NUT

1/2-13, NLN, G8

16шт.

25

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

26

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

27

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

4шт.

28

NS

NOT SERVICED

Center Section, 781D

1шт.

29

87270296

BRACKET

Mount, Center Section

4шт.

30

87271615

SLIDE

Assembly

2шт.

32

BN325829

HANGER

Slide Rail

1шт.

33

BN318505

RACK

Boom

1шт.

34

BN325812

BRACKET

Mount, ADJ. (Uniball)

1шт.

35

439-52064

HEADED PIN,1 1/4" x 4"

2шт.

36

87016611

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

3шт.

37

95-81139

WASHER,1.31" ID x 2" OD x 0.11" Thk

3шт.

38

BN50625

COTTER PIN

Pin-Cotter 1/4 X 2

2шт.

39

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

40

426-1632

BOLT,Hex, 1" - 8 x 2", Gr 8

1шт.

41

BN313099

MOUNTING PARTS

SMV GRP, Sprayer

1шт.

See Fig. 11-018

1шт.

42

BN67000

MOUNT

Hose Hanger Assy

1шт.

See Fig. 08-003

1шт.
