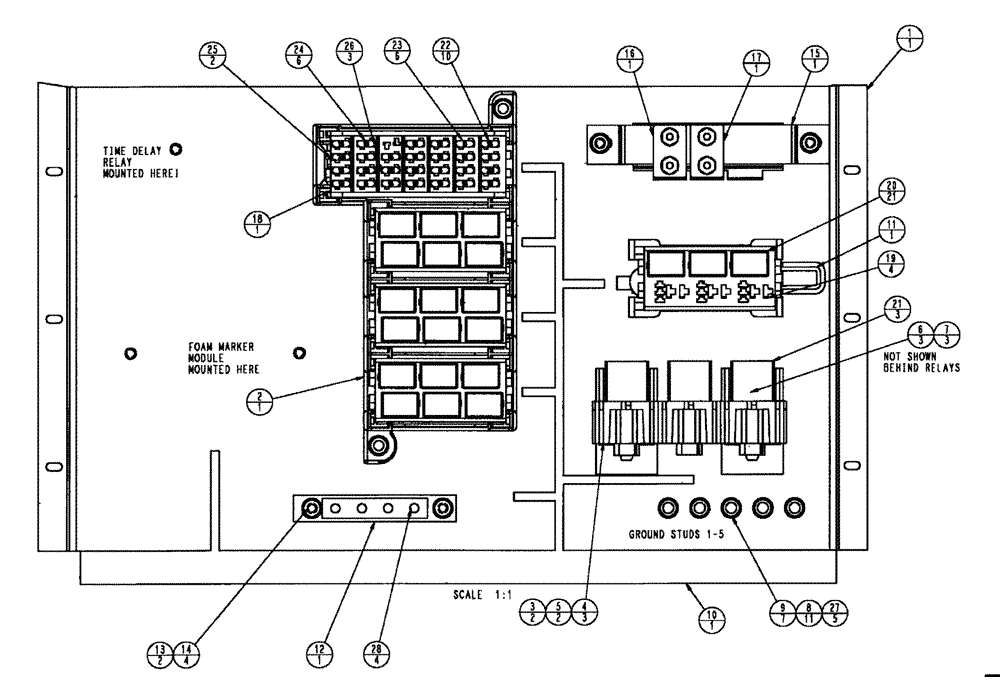

Запчасти Case IH SPX3200 (12-010) - ELECTRICAL PANEL ASSEMBLY (06) - ELECTRICAL

1

86986072

BRACKET, SUPPORTING

Mount, Fuse/Relay

1шт.

2

191135A1

BASE

Packard P/N 12110041

1шт.

3

367147A1

BRACKET

mounting (Dill #59205)

2шт.

4

367145A1

ELEC CONNECTOR,Female, 4 Pin

grey terminal (Dill #59184)

3шт.

5

367146A1

WEDGE

lock, red (Dill #59011)

2шт.

6

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

7

825-5145

NUT,M5, Flg Ser

3шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

7шт.

10

86986069

HARNESS

Main Cab 781D

1шт.

11

87266527

BASE

rework, 16-way fuseblock

1шт.

12

BN306353

Buss Bar, 4 Terminal

1шт.

13

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

14

87030561

NUT,M6 x 1, Cl 8

4шт.

15

BN300139

CIRCUIT BREAKER

3-CB Mount

1шт.

16

245761C1

CIRCUIT-BREAKER

1шт.

17

245765C1

CIRCUIT-BREAKER,30A

1шт.

18

144421A1

CONNECTING BLOCK

Module, Packard 28-Way Minifuse

1шт.

19

144417A1

CONNECTING BLOCK

Module, Packard 6-Way Micro Relay

4шт.

20

105849A1

RELAY

20 amp

21шт.

21

368459A1

RELAY,12V, 70A

70 amp power, Hella #66132

3шт.

22

121413A1

FUSE,15A, Mini, Blue

10шт.

23

121410A1

FUSE,5A, Mini, Tan

6шт.

24

121412A1

FUSE,10A, Mini, Red

6шт.

25

121411A1

FUSE,7.5A, Mini, Brown

2шт.

26

121415A1

FUSE,25A, Mini, Clear

3шт.

27

BN306354

Protection 6.35 X 20MM

5шт.

28

BN306355

Protection 5 X 20MM

4шт.
