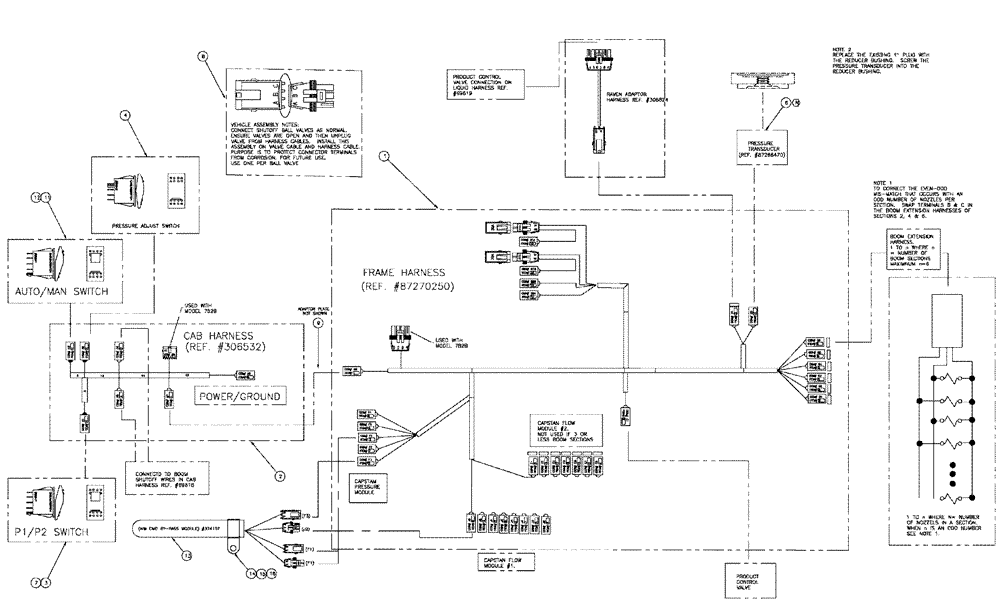

Запчасти Case IH SPX3200 (12-004) - AIM COMMAND ELECTRICAL GROUP (06) - ELECTRICAL

1

BN306506

WIRE HARNESS

Synchro

1шт.

2

BN306532

HARNESS

Synchro Cab

1шт.

3

BN65934

SWITCH

Single Pole, On-Off

2шт.

4

BN65942

SWITCH

W/Handle On-Off-On

1шт.

6

87268470

SENSOR

Pressure, Aim Command, Start Serial: 5654

1шт.

6

87268470

SENSOR

Pressure, Aim Command

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

7

BN65938

ROCKER

Actuator - Switch

2шт.

8

BN318073

ELECTRO/HYD CONTACT

6шт.

9

BN309260

ADAPTER

Plate

1шт.

11

BN306319

SWITCH

On - Off - On

1шт.

12

BN306320

SWITCH

Actuator

1шт.

13

BN324107

MODULE

By - Pass

1шт.

14

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.
