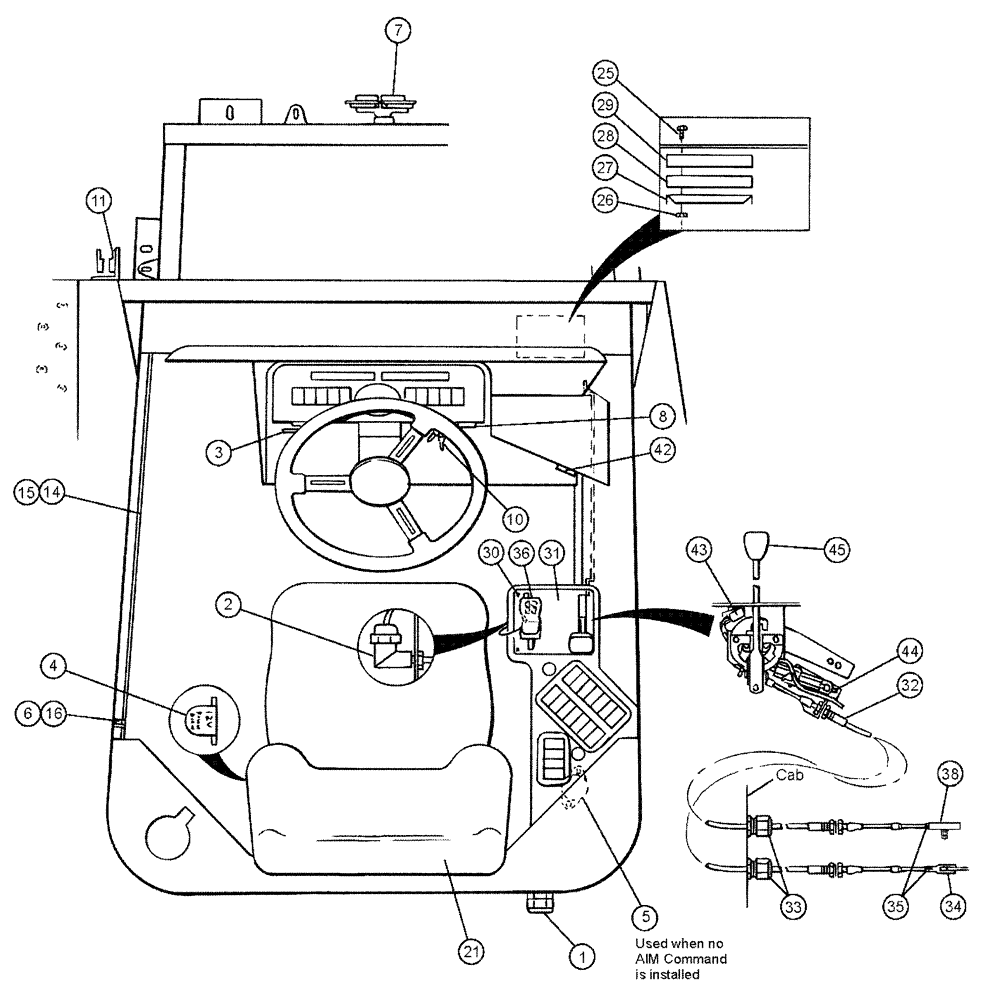

Запчасти Case IH SPX3200 (01-002) - CONTROLS, ELECTRICAL Cab Interior

1

BN66132

GROMMET

strain relief-bat.

2шт.

2

BN29523

ELBOW

Fitting - Electric-Liquid Tight

1шт.

3

BN63712

FLASHER SWITCH

Dual rate w/handle

1шт.

4

BN67965

POWER SOCKET

Assy, Outlet w/End

1шт.

5

BN306058

Terminal Cover

1шт.

BN306057

CONTACT HOUSING

Cover-Terminal

1шт.

Associated Part Of Assy, Terminal Cover, P/N BN306058

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Associated Part Of Assy, Terminal Cover, P/N BN306058

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Associated Part Of Assy, Terminal Cover, P/N BN306058

1шт.

6

BN67968

SWITCH

Door (Dome Light)

1шт.

493-41017

LOCK WASHER,Ext, #8

2шт.

Associated Part Of Switch-Door-(Dome Light), P/N BN67968

1шт.

86977693

NUT,Serrated, #8 - 32, Gr 5

#8-32

2шт.

Associated Part Of Switch-Door-(Dome Light), P/N BN67968

1шт.

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

2шт.

Associated Part Of Switch-Door-(Dome Light), P/N BN67968

1шт.

7

BN66114

HANDLE

Shifter

1шт.

See Fig. 01-005

1шт.

8

BN319663

BUZZER

Chime Tone

1шт.

10

334554A1

SWITCH

ignition, with 2 keys

1шт.

BN196-48-31C2

KEY, IGNITION

2-Case Logo

1шт.

Service Parts For Ref. 10

1шт.

11

BN315498

SWITCH

Proximity

1шт.

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5

4шт.

Associated Part Of Switch-Proximity, P/N BN315498

1шт.

BN68261

WASHER

#4, Flat, G5

4шт.

Associated Part Of Switch-Proximity, P/N BN315498

1шт.

14

BN50125

NUT

4-40, HH, G5

4шт.

15

BN67371

STRIP

Door Stop

1шт.

16

BN69132

EXTENSION

Switch Domelight

1шт.

21

NS

NOT SERVICED

Air Seat Group, SST, Start Serial: 6600

1шт.

See Fig. 01-003

1шт.

NS

NOT SERVICED

Seat-Magnum 200

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 01-004

1шт.

25

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

26

280736

NUT,5/16"-18, GC

2шт.

27

BN68264

COVER

14GA HRS 6.25 X 8.5

1шт.

28

BN68265

RUBBER SEAL

Rubber, 1 X 5 X 7

1шт.

29

BN68266

RUBBER SEAL

1 x 5 x 7

1шт.

31

BN68263

CONTROL

Shift & Throttle

1шт.

87267090

PLATE

Gate, Shift/Throttle

1шт.

Service Parts For Ref. 31

1шт.

32

BN29256

CABLE,2438.4mm L

Hydro, Control, 96"

1шт.

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84"

1шт.

33

BN66132

GROMMET

strain relief-bat.

2шт.

34

BN29258

CLEVIS

Assembly With Pin

1шт.

35

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

36

BN66114

HANDLE

Shifter, (DJ/Raven)

1шт.

See Fig. 01-005

1шт.

38

BN310488

THROTTLE

Ball Joint

1шт.

See Fig. 03-039

1шт.

42

BN16018

ALARM

Low Hopper

1шт.

43

BN98249

NEUTRAL START SWITCH

Micro Safe

1шт.

44

BN98248

SWITCH

Backup

1шт.

45

BN98247

KNOB

Assembly

1шт.
