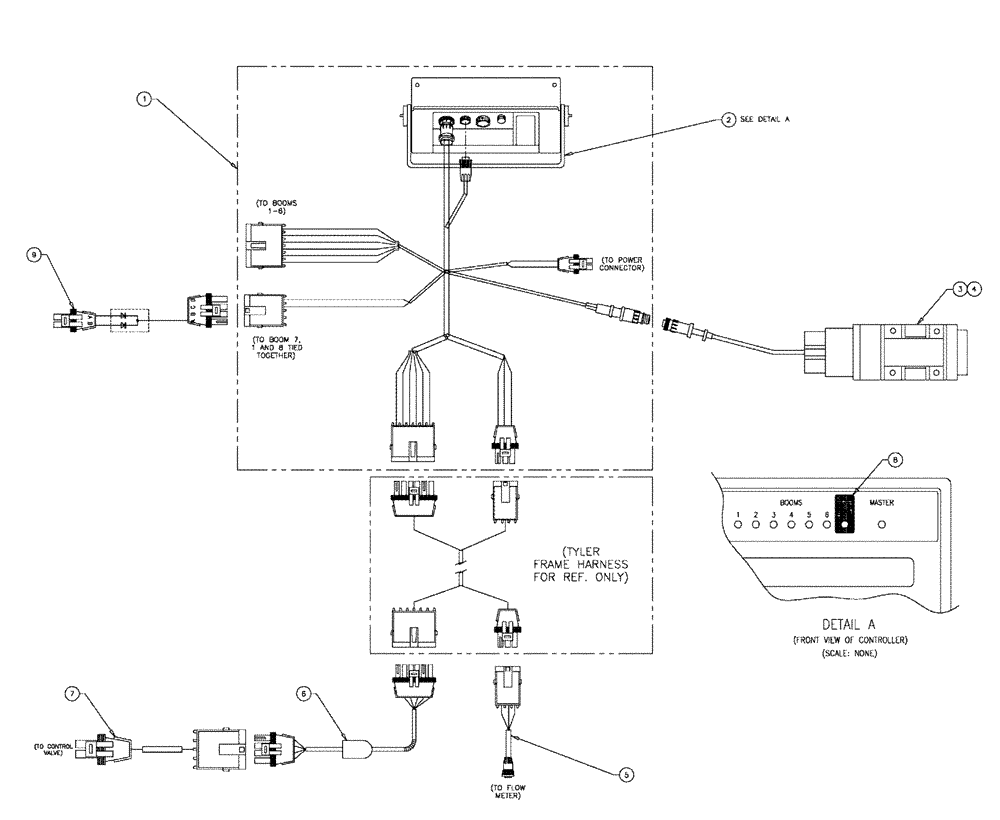

Запчасти Case IH SPX3200 (12-001) - RAVEN CONTROLLER ASSEMBLY (06) - ELECTRICAL

1

BN318249

CONTROL

System

1шт.

See Fig. 12-003

1шт.

2

BN69629

SUPPORT

Raven Controller

1шт.

3

BN95030A

RADAR

Ground Speed

1шт.

3

BN95030AR

SENSOR

SPX3200 SPRAYER, Ground Speed (6/01-12/04)

1шт.

3

BN95030AC

CORE-SENSOR

Return Number

1шт.

4

BN98411

BRACKET

Kit, Mtg - Radar Gun

1шт.

5

BN69626

HARNESS

Flowmeter Adaptor

1шт.

6

BN302145

VALVE

Driver Cable

1шт.

7

BN318979

VALVE GUIDE

Adapter, Driver

1шт.

8

343241A1

DECAL

fence row, Raven

1шт.

9

343665A1

WIRE HARNESS

Sense Adaptor

1шт.
