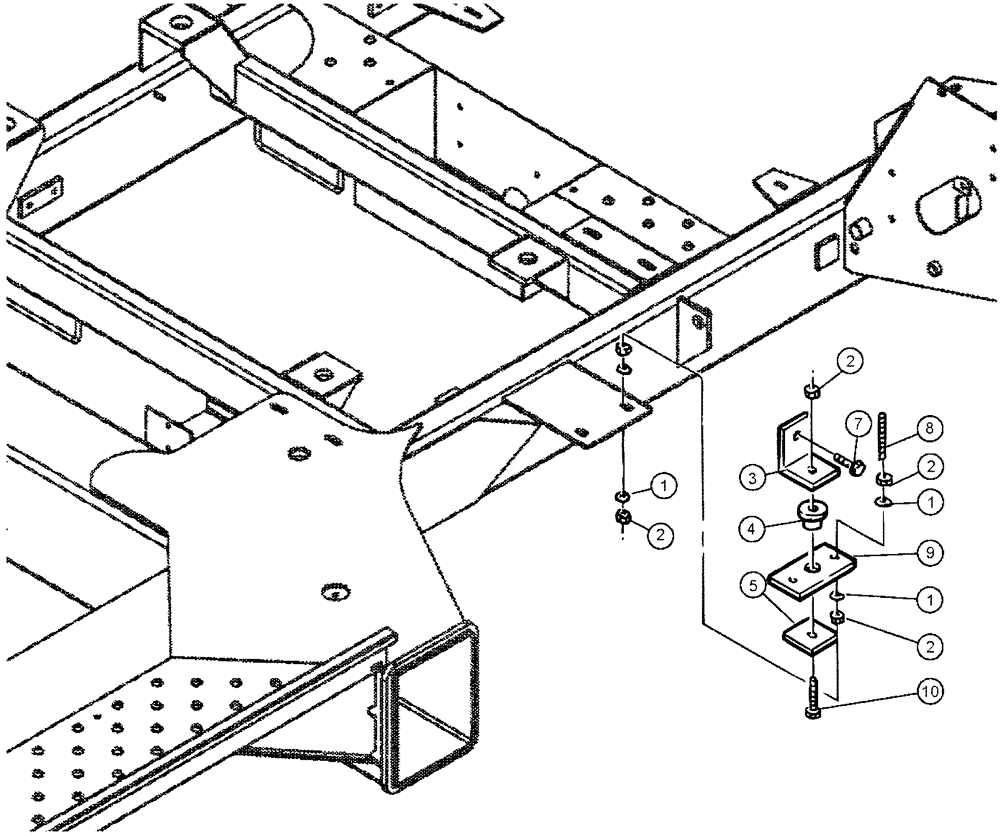

Запчасти Case IH SPX3200 (03-038) - HYDROSTATIC PUMP MOUNTING GROUP (01) - ENGINE

1

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

2

86992215

LOCK NUT,1/2"-13, GC

9шт.

3

BN25882

MOUNT

Pump, 3" x 3" x 3/8" Angle x 3"

1шт.

4

BN29243

ISOLATOR

Rubber 1/2" Bore

1шт.

5

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

1шт.

7

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

5шт.

8

BN19874

ROD

Threaded, 1/2"-13 x 3 3/4", SS

2шт.

9

BN25883

MOUNT

1/2 x 3 FB x 6.00

1шт.

10

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

11

BN50166

WASHER

WHM, 7/8 OD X 1/2 ID X 14 GA

5шт.
